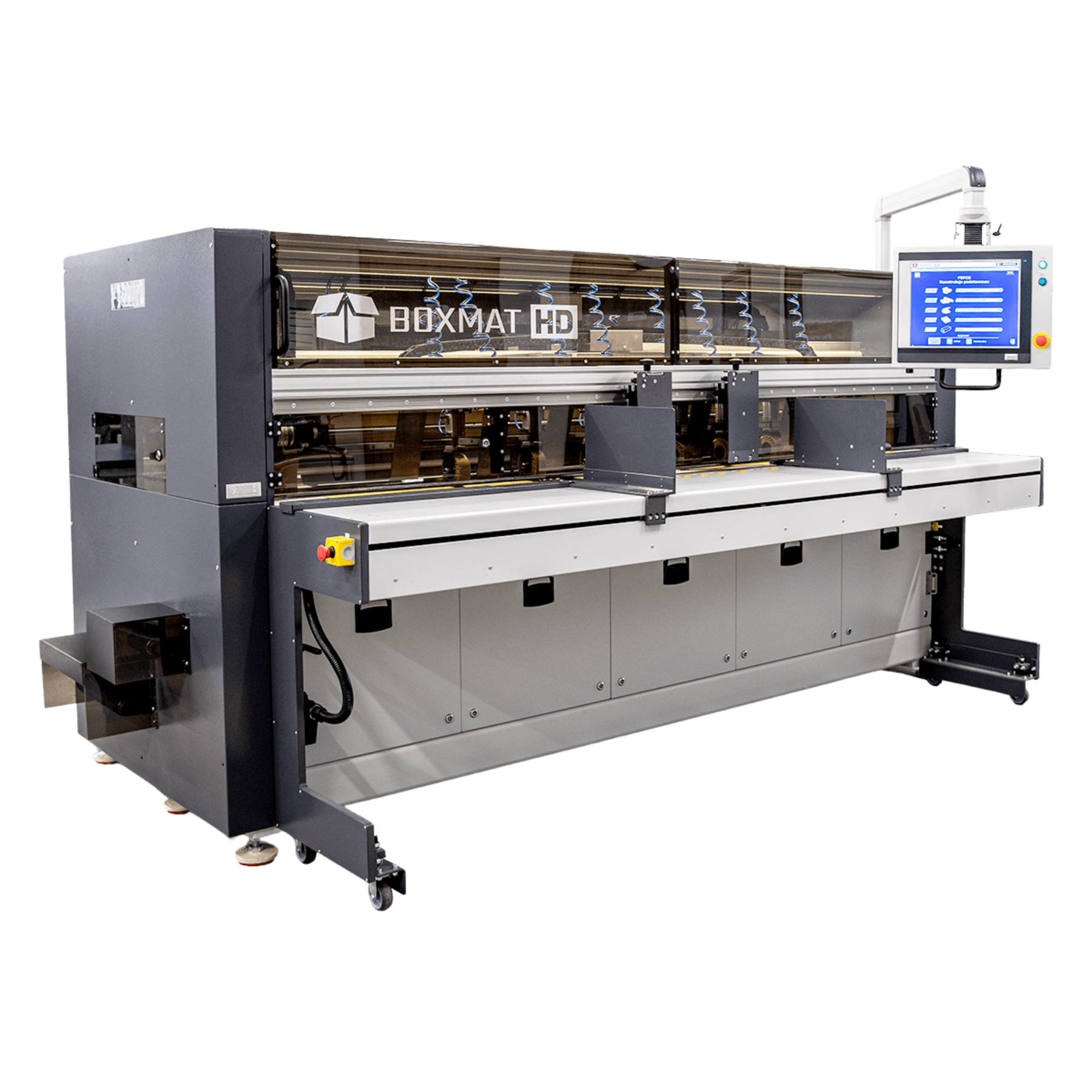

BoxMat HD BoxMaker
The most versatile of BOXMAT series model with High Density (Heavy Duty) corrugated board capabilities. Die Cutting built-in, Gluing System available.
Detachable cardboard feeders. The machine can be fully configurable to be used with manual feed, printer or fully automatic feed
Description
|
Cardboard used:
|
Single and double wall B, C, EB, BC
|
|
Types of boxes:
|
Preinstalled ~40 FEFCO styles + Box Wizard
|
|
Power supply:
|
3 x 380/415/480 V
|
|
Monimum board size:
|
250 mm (10″) width x 750 mm (30″ length)
|
|
Maximum board size:
|
2400 mm (94″) width x 9999 mm (394″) length
|
|
Min./max. distance between slotting knives:
|
70 – 2000 mm (2¾ – 79”) (with 200 mm knives)
|
|
Slot width:
|
7-8 mm
|
|
Sectional slotting knives:
|
100 mm (4”) each
|
|
Standard slotting knives length:
|
500 mm (20”) each side
|
|
Min./max. slotting knives length:
|
200 – 700 mm (8 – 27 1/2”)
|
|
Glue flap:
|
from 5 mm (3/16”)
|
|
Footprint (L x W x H):
|
3600 x 1900 x 1750 mm (142 x 75 x 69”)
|
|
Weight:
|
~3800 kg (7900 lbs)
|
About BoxMat BoxMakers
BoxMat BoxMakers produces cutting-edge box-making equipment for short-run corrugated packaging production. Their machines streamline custom packaging with automation, flexibility, and minimal material waste. Ideal for on-demand packaging operations, BoxMat is revolutionising the way businesses approach box manufacturing.
