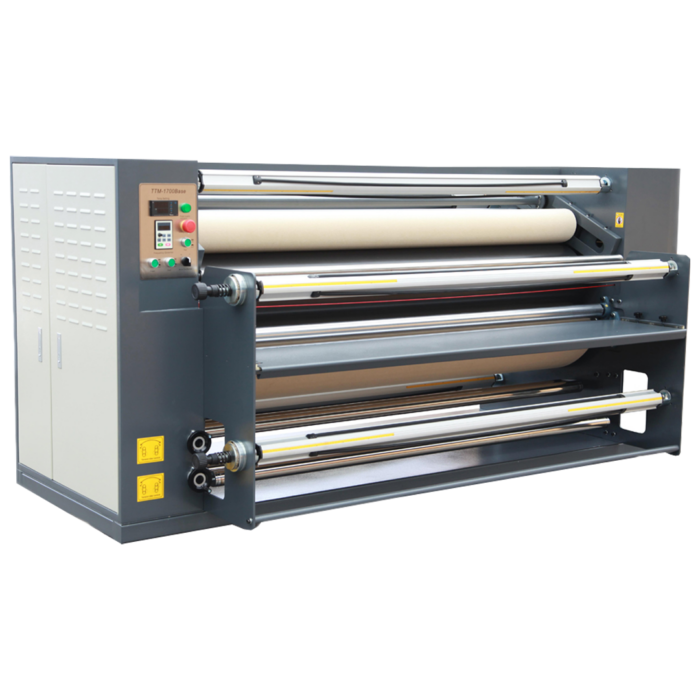

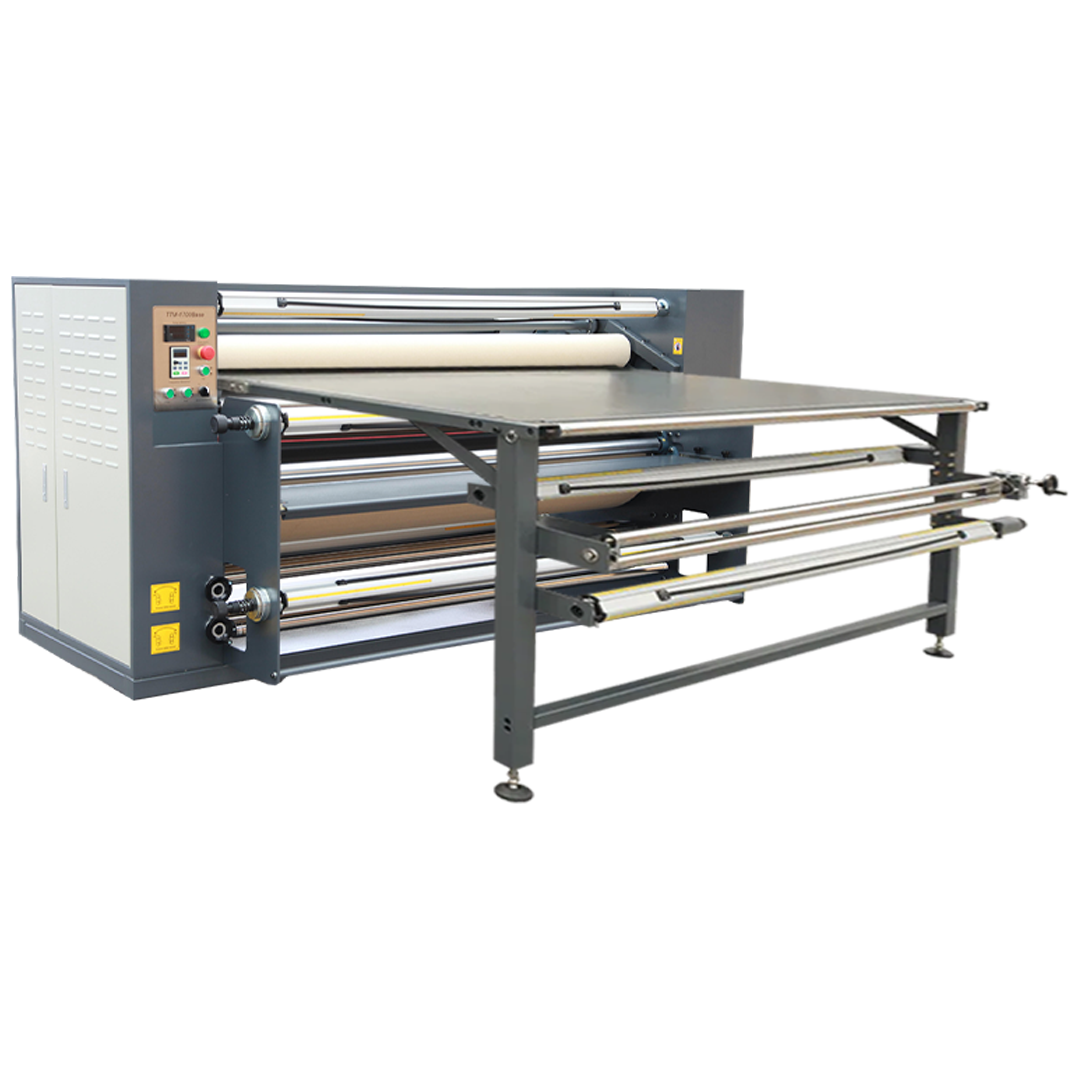

Fulei Union HT-1732 B2T Heat Transfer Machine
- 320 mm oil-heated drum with infrared heating and constant temperature control.
- Variable working speed up to 4.2 m/min and temperatures from 190–230°C.
- Three unwind and three rewind stations for roll handling.
- Adjustable tension with automatic and hand-wheel control for felt entry and release.
The Fulei HT-1732 B2T Heat Transfer Machine provides controlled heating and roll handling for heat transfer production.
Equipped with a 320 mm oil-heated drum and infrared heating elements, the HT-1732 B2T offers a working temperature range of 190 to 230°C. Variable speeds from 0 to 4.2 m/min allow operators to adjust material movement to suit the transfer process.
Three unwind and three rewind stations support roll handling, while adjustable tension helps maintain smooth finishing. The felt system incorporates both an automatic mode and a hand-wheel design for entry and release.
Key Features
- 320 mm diameter oil-heated drum
- Infrared heating elements
- Constant temperature control
- Variable working speed from 0 to 4.2 m/min
- Working temperature range of 190 to 230°C
- Alarm temperature of 250°C
- Adjustable tension for smooth finishing
- Automatic mode for felt entry and release
- Hand-wheel design for felt entry and release
- Three unwind and three rewind stations
- 750 W drive motor
- 20 kW power consumption
- 380 V three-phase power requirement
Designed for Consistent Roll Handling
The HT-1732 B2T combines multiple unwind and rewind stations with adjustable tension to manage materials throughout production. Its temperature and speed controls allow the transfer process to be set around the requirements of each job.
Specifications are subject to change without prior notice.
| Model | HT-1732 B2T |
|---|---|
| Machine Type | Heat transfer machine |
| Heating Type | Oil |
| Heating Elements | Infrared |
| Drum Diameter | 320 mm |
| Variable Working Speed | 0–4.2 m/min |
| Working Temperature | 190–230°C |
| Alarm Temperature | 250°C |
| Tension Control | Adjustable |
| Felt Entry and Release | Automatic mode and hand-wheel design |
| Unwind Stations | 3 |
| Rewind Stations | 3 |
| Drive Motor | 750 W |
| Power Consumption | 20 kW |
| Power Requirements | 380 V, 50/60 Hz, three phase |
| Machine Dimensions | 2,480 × 1,244 × 1,443 mm |
| Net Weight | 1,600 kg |
| Gross Weight | 1,800 kg |
