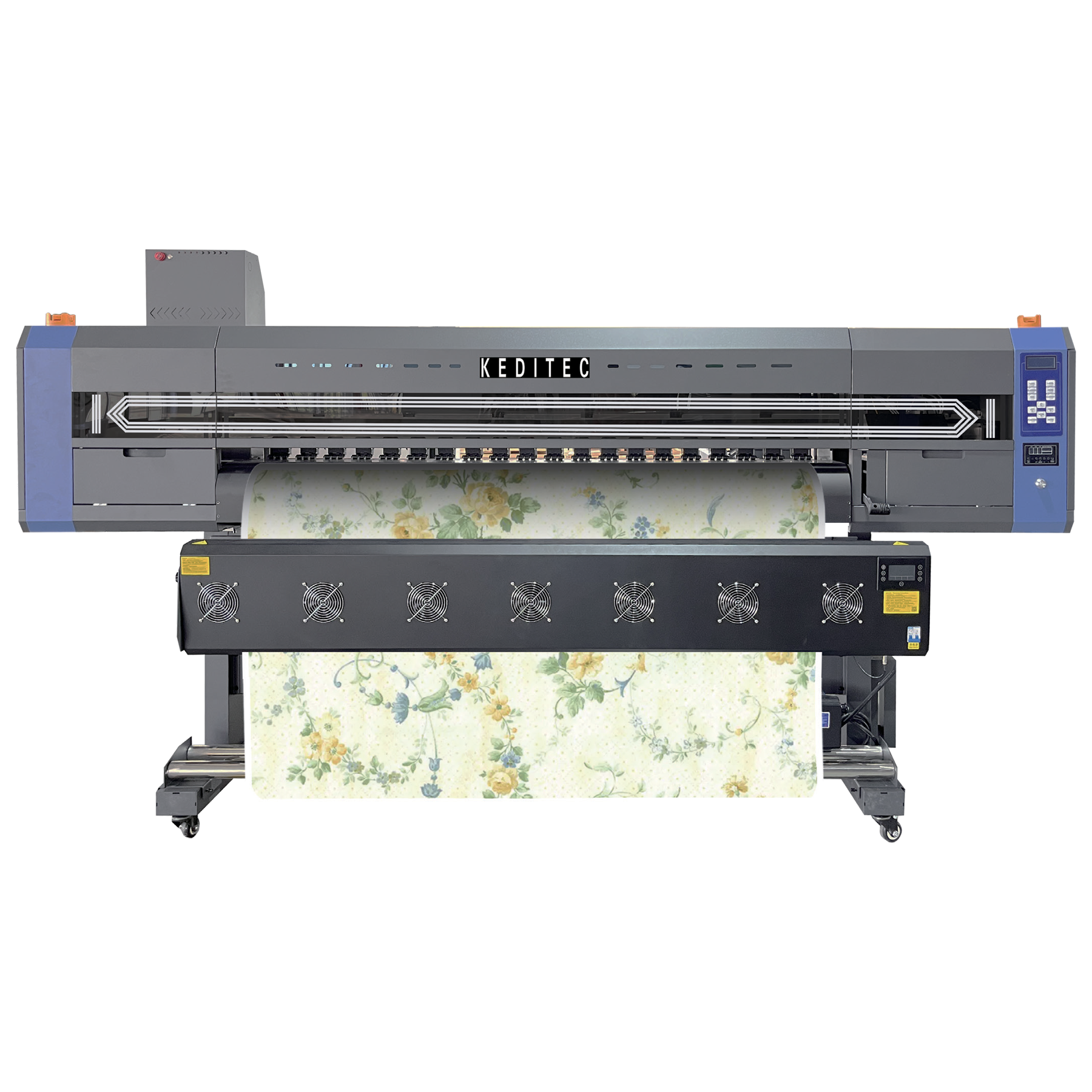

Keditec K2-18TX 1.8m Dye Sublimation Printer
- 1,800 mm printing width for wide-format sublimation production.
- Dual i3200-A1 printheads with resolutions up to 3,600 dpi.
- Printing speeds up to 40 m²/h at 4 pass.
- Integrated post heater, infrared dryer and fan system with CMYK sublimation inks.
Get the equipment you need now and pay monthly.
Available for qualifying businesses. Speak to our team to arrange a quote.
| Printer Technology | Dye Sublimation |
|---|
The Keditec K2-18TX Sublimation Printer provides a wide-format printing solution for businesses producing sublimation transfers.
With a printing width of 1,800 mm and dual i3200-A1 printheads, the K2-18TX offers speeds of 40 m²/h at 4 pass and 27 m²/h at 6 pass. It supports a maximum printing resolution of 3,600 dpi and accommodates media up to 1,820 mm wide and 1 mm thick.
The printer uses CMYK sublimation inks supplied through a continuous ink supply system with 220 ml cartridges and a 1.5 L ink tank. An integrated post heater, infrared dryer and fan system support print drying, while the tensioning and rolling systems help manage media through production.
Key Features
- Maximum printing width of 1,800 mm
- Supports media up to 1,820 mm wide
- Maximum media thickness of 1 mm
- Maximum media weight of 60 kg
- Dual i3200-A1 printheads
- Piezoelectric inkjet printing technology
- Maximum printing resolution of 3,600 dpi
- 4-pass printing at 40 m²/h with 720 × 1,200 dpi resolution
- 6-pass printing at 27 m²/h with 720 × 1,800 dpi resolution
- CMYK sublimation ink configuration
- Continuous ink supply system with 220 ml cartridges and a 1.5 L ink tank
- THK high-precision mute rail
- 3-in-1 pinch rollers
- High-stability tensioning pulley system
- Servo motor
- Automated moisturising and cleaning system
- Integrated post heater, infrared dryer and fan system
- Intelligent rolling system
- LAN connectivity
- RIP software included
Designed for Sublimation Workflows
The K2-18TX combines dual-printhead output with integrated drying and controlled media feeding. Its 1.8 m printing width supports larger transfer layouts, while the automated cleaning and bulk ink systems assist with day-to-day operation.
Specifications are subject to change without prior notice.
| Model | K2-18TX |
|---|---|
| Printer Type | Sublimation printer |
| Printheads | Dual i3200-A1 |
| Printing Technology | Piezoelectric inkjet |
| Maximum Printing Width | 1,800 mm |
| Maximum Media Width | 1,820 mm |
| Maximum Media Thickness | 1 mm |
| Maximum Media Weight | 60 kg |
| Ink Type | Sublimation ink |
| Ink Colours | CMYK |
| Ink Supply System | 4 × 4 CISS with 220 ml ink cartridge and 1.5 L ink tank |
| Maximum Printing Resolution | 3,600 dpi |
| 4-Pass Printing Speed | 40 m²/h at 720 × 1,200 dpi |
| 6-Pass Printing Speed | 27 m²/h at 720 × 1,800 dpi |
| Media Heating System | Integrated post heater, infrared dryer and fan system |
| Interface | LAN |
| Power Supply | AC 220 V ±10%, 50/60 Hz |
| Machine Dimensions with Stand (W × D × H) | 3,000 × 1,000 × 1,800 mm |
| Machine Weight with Stand | 320 kg |
| Package Dimensions (W × D × H) | 3,360 × 760 × 1,040 mm |
| Package Weight | 550 kg |
| Operating Environment | 15–32°C; 35–80% relative humidity, non-condensing |
| Power-Off Environment | 5–40°C; 20–80% relative humidity, non-condensing |
| Included Accessories | USB cable, media clamp, manual, drain bottle, ink cartridges and RIP software |
