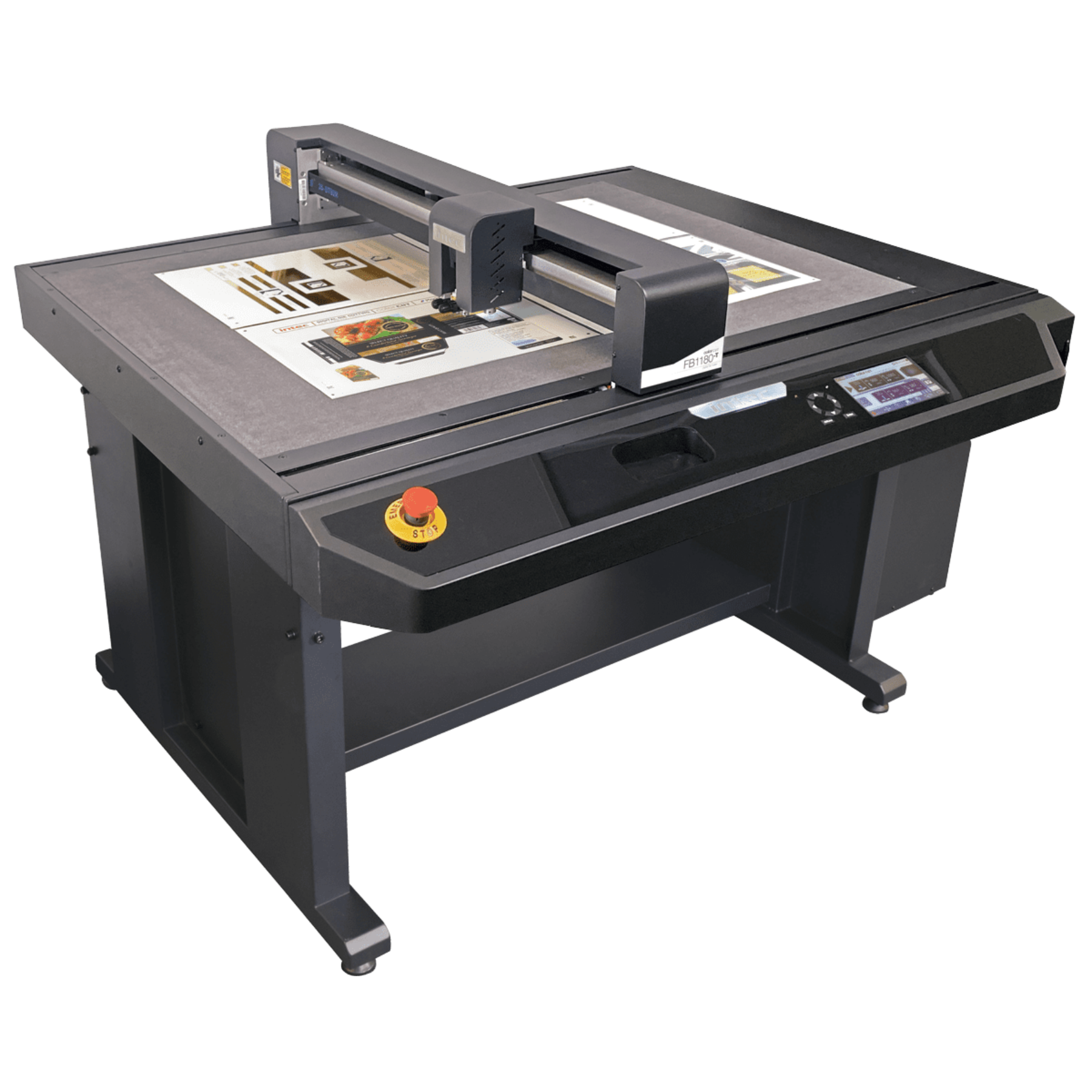

Intec ColorCut FB1180-T B1 Digital Die Flatbed Cutter/Creaser
The premium Intec ColorCut FB1180-T is the largest addition to Intec’s flatbed range, and is the first in the new tangential T-SERIES
Intec’s new flagship FB1180-T cutting table is manufactured with premium components for high quality, reliability, and class-leading performance. This is reinforced with the eye-catching styling of the sweeping control panel dashboard that includes state-of-the-art 7″ immersive touch panel control.
The FB1180-T with combined market leading ColorCut Pro 5 software, brings many advanced features to aid design and production.
Perfect for on-demand prototype pieces to light production runs of two and three-dimensional items, the FB1180-T flatbed cutting table can cut and crease virtually any form of print, from sample packaging; to high-end products; protective cartons or synthetic Point-of-Sale items and kiss-cut adhesive labels.
Cut area
Format/size: B1+ (4 x SRA3) / US ARCH E1 (4 x Tabloid Extra)
Maximum media area: 800mm x 1100mm
Effective contour cutting area: 680mm x 1020mm
Stand: Included
Media hold-down method: 1100W vacuum suction
Acoustic Muffler / Silencer: included
Cutting control:
Cutting carriage: Quad Tool Cutting Carriage, 4 Tool positions
Cutting force: up to 2,500gf (2.5)
Crease force: up to 2,500gf (2.5)
Max cutting depth: Paper/card up to 1000micron/800gsm, Max. depth 1.2mm (low density substrate ie. rice paper / airboard). 3000 micron on E/F/N Fluted board and selected media up to 3mm
Max speed:* High Quality: 750mm/s. Standard Mode: 960mm/s. Fast Mode:1,200mm/s
Typical cut accuracy: +/- 125 μ
Mountable tools: 5 tools supplied as standard: Blade holder, creasing tool & pen tool, tangential wheel creaser, tangential blade cutter
Software connectivity
ColorCut Pro – Production Studio 5: Windows 10 Pro x64 bit, 4 GB of RAM. Recommended Resolution: 1280×960 or higher.. Wi-Fi for Live Video (Wi-Fi Dongle inc. with cutter). 1 x USB or 1 x Ethernet.
Registration control:
Registration system: Advanced 8th generation ARMS (Automatic Registration Mark System), Uses hi-res CCD camera system to read QR codes for instant job retrieval, also accurately reads registration marks, corrects linear, scale, skew and rotational/angular positional differences adapting the the cut file as required.
General
Weight: 100kg unpacked.
Max’ dimensions: 1550 x 1350 x 1098mm
