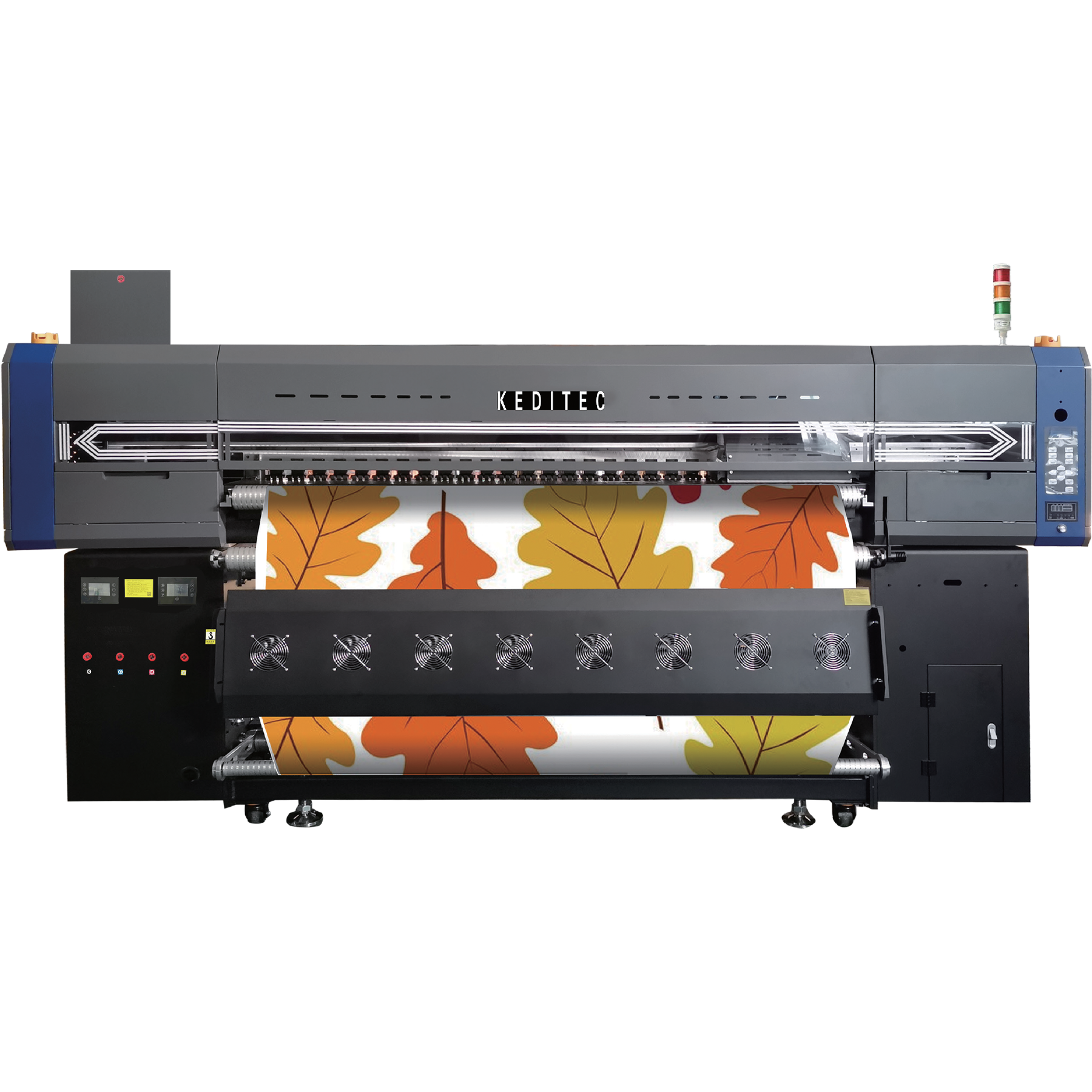

Keditec K8-20TX Dye Sublimation Printer

  • Eight i3200-A1 printheads for industrial heat transfer paper printing.
  • Printing speeds up to 380 m²/h at 1 pass.
  • Supports media up to 2,000 mm wide with automatic loading and take-up.
  • Automatic ink replenishment and an external air and heat dryer.

Finance Available

Get the equipment you need now and pay monthly.

Available for qualifying businesses. Speak to our team to arrange a quote.

Printer TechnologyDye Sublimation
SKU: K8-20TX Categories: ,
Description

The Keditec K8-20TX Digital Industrial Printer provides a high-output solution for businesses printing onto heat transfer paper.

Equipped with eight i3200-A1 printheads, the K8-20TX delivers quoted speeds of 380 m²/h at 1 pass and 220 m²/h at 2 pass. It supports media up to 2,000 mm wide and uses piezoelectric inkjet technology with a 3.5 pl droplet size.

A siphon ink path and automatic refill system supply ink through 220 ml secondary tanks and 5 L ink bottles. Automatic air expansion shafts support media loading and take-up, while an external air and heat dryer assists with drying during production.

Key Features

  • Eight i3200-A1 printheads
  • Piezoelectric inkjet printing technology
  • 3.5 pl droplet size
  • Supports heat transfer paper up to 2,000 mm wide
  • 1-pass printing at 380 m²/h with 360 × 1,200 dpi resolution
  • 2-pass printing at 220 m²/h with 360 × 2,400 dpi resolution
  • 220 ml secondary ink tanks and 5 L ink bottles
  • Siphon ink path with automatic ink replenishment
  • Low-ink alarm system
  • Reinforced THK guide rail system
  • Servo-driven feeding system
  • AC servo drive system
  • Upgraded pressure wheel assembly
  • Vacuum air platform
  • Strengthened swing rod structure
  • Sliding inflatable shaft system
  • Automatic air expansion shaft loading and take-up
  • External automatic air and heat dryer
  • Automatic cleaning and moisturising unit
  • Mirror baffle maintenance design
  • Ultraprint RIP software supplied as standard
  • USB 3.0 connectivity

Designed for Industrial Transfer Printing

The K8-20TX combines eight-printhead output with automated ink delivery, drying and media handling. Its reinforced motion and feeding systems support continuous production workflows for heat transfer paper.

Specifications are subject to change without prior notice.

About brand
Explore Our Brands

Keditec

Explore Keditec printing equipment for signage, textiles and personalised applications. Discover UV, eco-solvent, dye sublimation and DTF solutions to help you broaden your print offering and production capabilities.

UV Printers
Eco-Solvent Printers
Sublimation Printers
DTF Printers
Technical Specifications
Model K8-20TX
Printer Type Digital industrial printer for heat transfer paper
Printheads Eight i3200-A1 printheads
Printing Technology Piezoelectric inkjet
Droplet Size 3.5 pl
Maximum Media Width 2,000 mm
Print Media Heat transfer paper
1-Pass Printing Speed 380 m²/h at 360 × 1,200 dpi
2-Pass Printing Speed 220 m²/h at 360 × 2,400 dpi
Ink Tank Capacity 220 ml secondary ink tank and 5 L ink bottle
Listed Colour Configurations CMYK / CMYK + Lc + Lm + Lk + LLk / FY, FM, Red, Orange, Green, Blue
Ink Supply System Siphon ink path with automatic refill system
Standard RIP Software Ultraprint
Optional RIP Software Maintop 6.0, PhotoPrint, ONYX, NeoStampa and PrintFactory
Media Loading and Take-Up Automatic air expansion shaft system
Dryer External automatic air and heat integrated dryer
Cleaning System Automatic cleaning and moisturising integrated unit
Supported File Formats JPG, TIFF, PDF and other supported formats
Interface USB 3.0
Printing System Power 2,000 W
Drying System Power Maximum 8,000 W
Listed Power Supply AC 220 V ±5%, 16 A, 50 Hz ±1
Machine Dimensions with Stand (W × D × H) 3,550 × 1,590 × 1,970 mm
Machine Weight with Stand 1,200 kg
Operating Environment 15–32°C; 35–80% relative humidity, non-condensing
Power-Off Environment 5–40°C; 20–80% relative humidity, non-condensing
