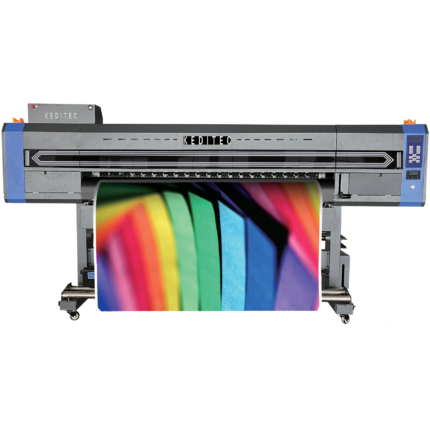

Keditec K4-18TX Max 1.8m Dye Sublimation Printer
- Four i3200-A1 printheads with resolutions up to 3,600 dpi.
- 1,800 mm printing width for wide-format sublimation production.
- Printing speeds up to 80 m²/h at 4 pass.
- 3 L bulk ink supply with integrated heating, infrared drying and fan assistance.
Finance Available
Get the equipment you need now and pay monthly.
Available for qualifying businesses. Speak to our team to arrange a quote.
| Printer Technology | Dye Sublimation |
|---|
The Keditec K4-18TX Max Dye Sublimation Printer provides a wide-format production solution for businesses printing sublimation transfers.
With four i3200-A1 printheads and a printing width of 1,800 mm, the K4-18TX Max delivers speeds of 80 m²/h at 4 pass and 60 m²/h at 6 pass. It offers a maximum resolution of 3,600 dpi and supports media up to 1,820 mm wide, 1 mm thick and 100 kg in weight.
CMYK dye sublimation inks are supplied through a continuous ink supply system with 220 ml cartridges and a 3 L ink tank. An integrated post heater, infrared dryer and fan system assist drying, while automatic moisturising and cleaning support printhead maintenance.
Key Features
- Four i3200-A1 printheads
- Piezoelectric inkjet printing technology
- Maximum printing width of 1,800 mm
- Supports media up to 1,820 mm wide
- Maximum media thickness of 1 mm
- Maximum media weight of 100 kg
- Maximum printing resolution of 3,600 dpi
- 4-pass printing at 80 m²/h with 720 × 1,200 dpi resolution
- 6-pass printing at 60 m²/h with 720 × 1,800 dpi resolution
- CMYK dye sublimation ink configuration
- Continuous ink supply system with 220 ml cartridges and a 3 L ink tank
- Integrated post heater, infrared dryer and fan system
- Automatic moisturising and cleaning system
- Precision silent rail
- DC servo motor
- Reinforced swing rod for stability
- LED inspection light panel
- LAN and USB 3.0 connectivity
- RIP software included
Designed for Productive Sublimation Printing
The K4-18TX Max combines four-printhead output with bulk ink supply and integrated drying. Its media capacity and reinforced handling structure support larger production jobs, while the two specified print modes provide a choice of speed and resolution.
Specifications are subject to change without prior notice.
| Model | K4-18TX Max |
|---|---|
| Printer Type | Dye sublimation printer |
| Printheads | Four i3200-A1 printheads |
| Printing Technology | Piezoelectric inkjet |
| Maximum Printing Width | 1,800 mm |
| Maximum Media Width | 1,820 mm |
| Maximum Media Thickness | 1 mm |
| Maximum Media Weight | 100 kg |
| Ink Type | Dye sublimation ink |
| Ink Colours | CMYK |
| Ink Supply System | 4 × 4 CISS with 220 ml ink cartridge and 3 L ink tank |
| Maximum Printing Resolution | 3,600 dpi |
| 4-Pass Printing Speed | 80 m²/h at 720 × 1,200 dpi |
| 6-Pass Printing Speed | 60 m²/h at 720 × 1,800 dpi |
| Media Heating System | Integrated post heater, infrared dryer and fan system |
| Interface | LAN / USB 3.0 |
| Power Supply | AC 220 V ±10%, 50/60 Hz |
| Machine Dimensions with Stand (W × D × H) | 3,213 × 800 × 1,370 mm |
| Machine Weight with Stand | 500 kg |
| Package Dimensions (W × D × H) | 3,350 × 1,130 × 1,820 mm |
| Package Weight | 610 kg |
| Operating Environment | 15–32°C; 35–80% relative humidity, non-condensing |
| Power-Off Environment | 5–40°C; 20–80% relative humidity, non-condensing |
| Included Accessories | USB cable, media clamp, manual, drain bottle, ink cartridges and RIP software |
