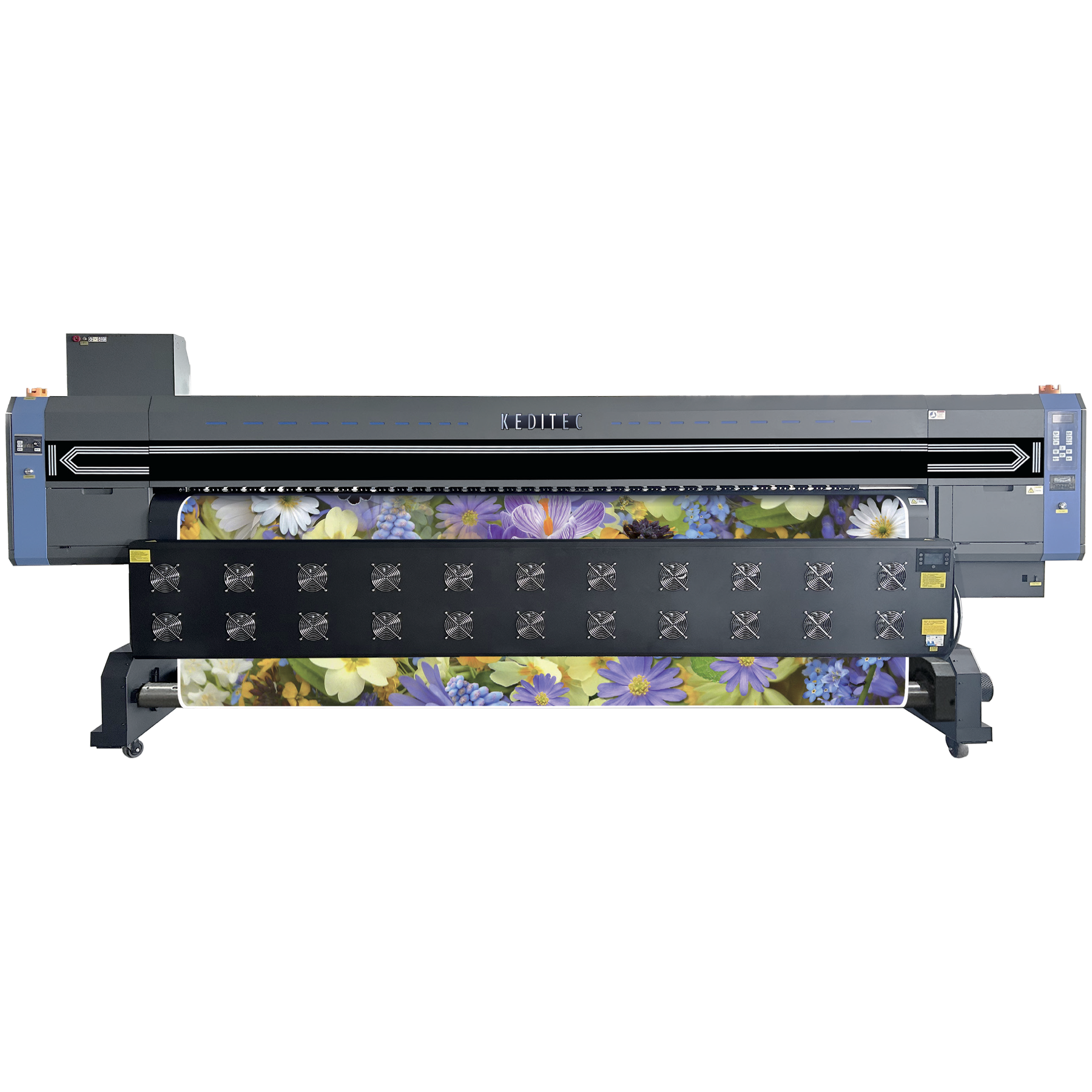

Keditec K4-32TX 3.2m Dye Sublimation Printer
- 3,200 mm print width for wide-format dye sublimation production
- Four Epson i3200-A1 printheads with resolution up to 2,400 dpi
- CMYK sublimation inks with 3 L bulk ink tanks
- Integrated post heater and infrared dryer with automated cleaning and media take-up
Finance Available
Get the equipment you need now and pay monthly.
Available for qualifying businesses. Speak to our team to arrange a quote.
| Printer Technology | Dye Sublimation |
|---|
The Keditec K4-32TX 3.2 m Dye Sublimation Printer provides a wide-format production platform for businesses working with sublimation media. Its 3,200 mm print width and four Epson i3200-A1 printheads support CMYK printing at resolutions up to 2,400 dpi.
A continuous ink supply system combines 220 ml ink cartridges with 3 L ink tanks, providing a high-capacity ink supply for production. The integrated post heater and infrared dryer assist media drying as part of the printing workflow.
The K4-32TX features a precision motion system, high-stability drive system and DC servo motor. Automated cleaning, advanced heating control and supplied media loading and take-up equipment support everyday operation.
Key Features
- Print width of up to 3,200 mm
- Four Epson i3200-A1 printheads
- Piezoelectric inkjet printing technology
- Maximum print resolution of 2,400 dpi
- CMYK sublimation ink configuration
- Continuous ink supply with 220 ml cartridges and 3 L ink tanks
- Precision motion system
- High-stability drive system
- Stable media feeding system
- High-quality DC servo motor
- Automated cleaning system
- Advanced heating control
- Integrated post heater and infrared dryer
- Accepts media up to 3,220 mm wide and 1 mm thick
- Maximum media weight of 80 kg
- Network connectivity
- Stand, media loading and take-up system supplied
- Air-cooling system supplied
Designed for Wide-Format Sublimation Production
The K4-32TX combines a 3.2 m printing format with four printheads, bulk ink supply and integrated drying. Its media loading and take-up system supports businesses handling wide-format jobs on compatible sublimation media.
Specifications are subject to change without prior notice.
| Model | Keditec K4-32TX |
|---|---|
| Printer Type | Dye sublimation printer |
| Printing Technology | Piezoelectric inkjet |
| Printheads | 4 × Epson i3200-A1 |
| Maximum Print Width | 3,200 mm |
| Maximum Print Resolution | 2,400 dpi |
| Ink Type | Sublimation ink |
| Ink Colours | CMYK |
| Ink Supply System | 4 × 4 continuous ink supply system; 220 ml ink cartridges with 3 L ink tanks |
| Maximum Media Width | 3,220 mm |
| Maximum Media Thickness | 1 mm |
| Maximum Media Weight | 80 kg |
| Media Heating and Drying | Integrated post heater and infrared dryer |
| Printhead Maintenance | Automated cleaning system |
| Motor | DC servo motor |
| Interface | Network |
| Power Supply | AC 220 V ±10%, 50/60 Hz |
| Operating Environment | 15–32°C; 35–80% relative humidity, non-condensing |
| Power-Off Environment | 5–40°C; 20–80% relative humidity, non-condensing |
| Machine Dimensions with Stand | 4,620 × 970 × 1,560 mm (W × D × H) |
| Machine Weight with Stand | 700 kg |
| Package Dimensions | 4,800 × 1,100 × 1,660 mm (W × D × H) |
| Package Weight | 800 kg |
| Supplied Accessories | Stand, media loading and take-up system, air-cooling system and bulk ink cartridge system |
