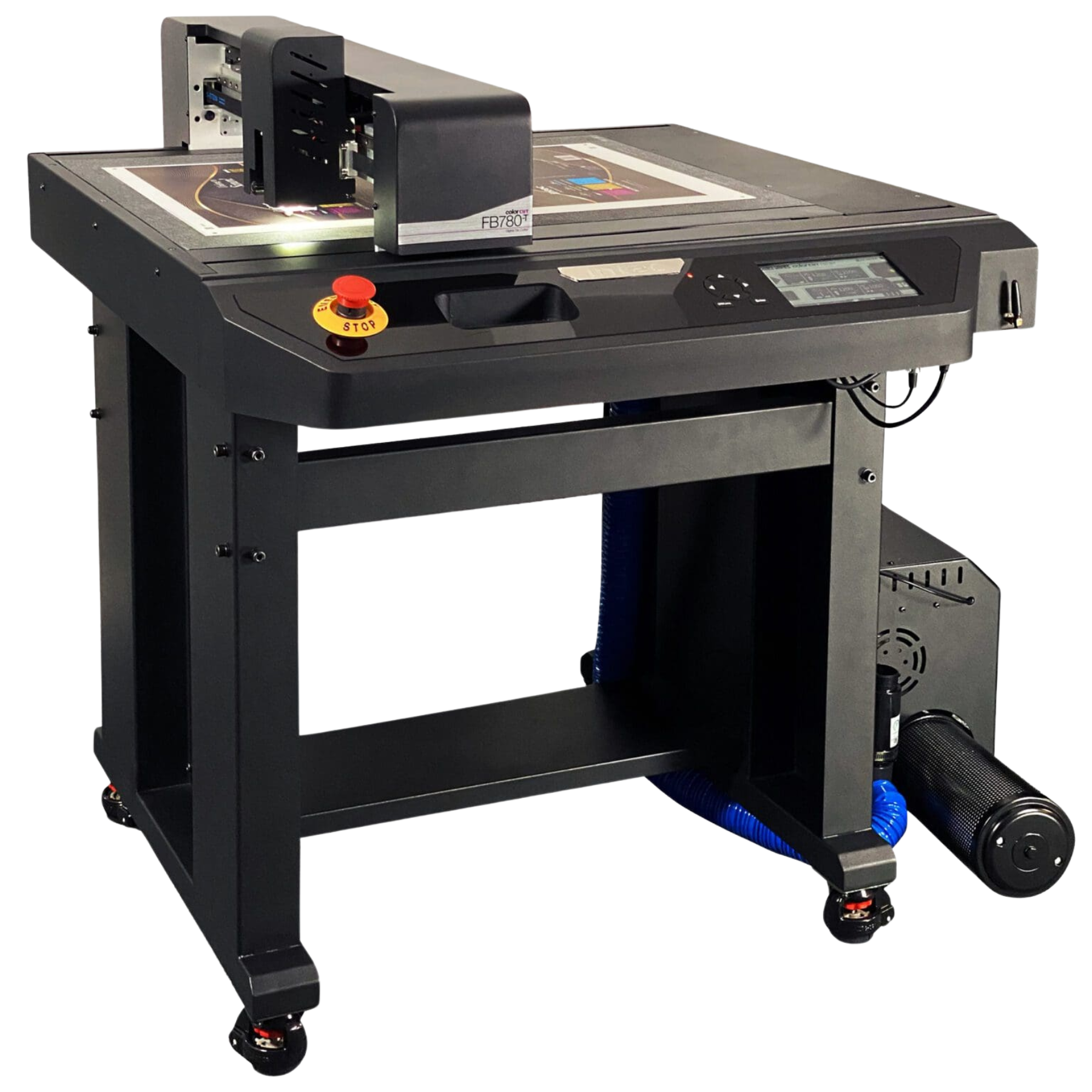

Intec ColorCut FB780-T B2+ Digital Die Flatbed Cutter and Tangential Creaser
The NEW FB780-T is the world’s first B2+ digital flatbed cutter providing the ultimate crease and precision cutting for any die-cut application.
It’s compact designed cutting table features a dual tool head with an impressive 2.5kg force Active Tangential Wheel creaser and 1kg passive contour blade tool for exceptional cutting & creasing. Combined with a powerful vacuum system and high-speed performance, makes it ideal for on-demand, medium to light production runs of two and three-dimensional items.
This powerful and accurate device can cut and crease virtually any form of print, from sample and prototype packaging for high-end products and protective cartons to synthetic point-of-sale items and kiss-cut adhesive labels/stickers.
With our combined industry leading ColorCut Pro software, the FB780-T brings many advanced features to aid design and production.
Cut Area
Format/size: B2+ (2 x SRA3)
Maximum media area: 580mm x 800mm
Effective contour cutting area: 480mm x 660mm
Stand: Included
Media hold-down method: 750W vacuum suction
Acoustic Muffler / Silencer: Included
Cutting control
Cutting carriage: Dual tool cutting carriage, 2 independently operated tool positions
Cutting force: Tool 1: Cut – up to 1,000gf (1Kg)
Crease force: Tool 2: Crease up to 2,500gf (2.5Kg)
Max cutting depth: Paper/card up to 800micron, Max. depth 1,000 micron (low density substrate i.e. rice paper / soft board).
Max speed:* Fast Mode:1,200mm/s. Standard Mode: 960mm/s. High Definition: 750mm/s.
Typical cut accuracy: +/- 125 μ
Mountable tools: Tool position 1: Tangential wheel creasing tool, supplied with 0.28 (narrow wheel)
Optional wheels available:
Medium (0.55)
Wide (0.95)
Tool position 2: Contour (drag) blade holder, & pen tool for calibration
Software connectivity
ColorCut Pro – Production Studio 5: Windows 10/11 Pro x64 bit, 8 GB of RAM. Recommended Resolution: 1280×960 or higher. 1 x USB or 1 x Ethernet.
Registration control:
Registration system: Advanced 9th generation ARMS (Automatic Registration Mark System), Uses hi-res Vision 3 CCD camera system to read QR codes for instant job retrieval, also accurately reads registration marks, corrects linear, scale, skew and rotational/angular positional differences adapting the the cut file as required.
General
Weight:
84.4kg unpacked. (vacuum fan: 24.2kg)
170kg packed including fan
Max’ dimensions:
Table dimensions (unpacked)
L 915 x W 1065 x H 1105mm
Fan dimensions:
L 320 x W 615 x H 410mm
Dimensions (crated):
L 1532 x W 1147 x H 605mm (includes vacuum fan
