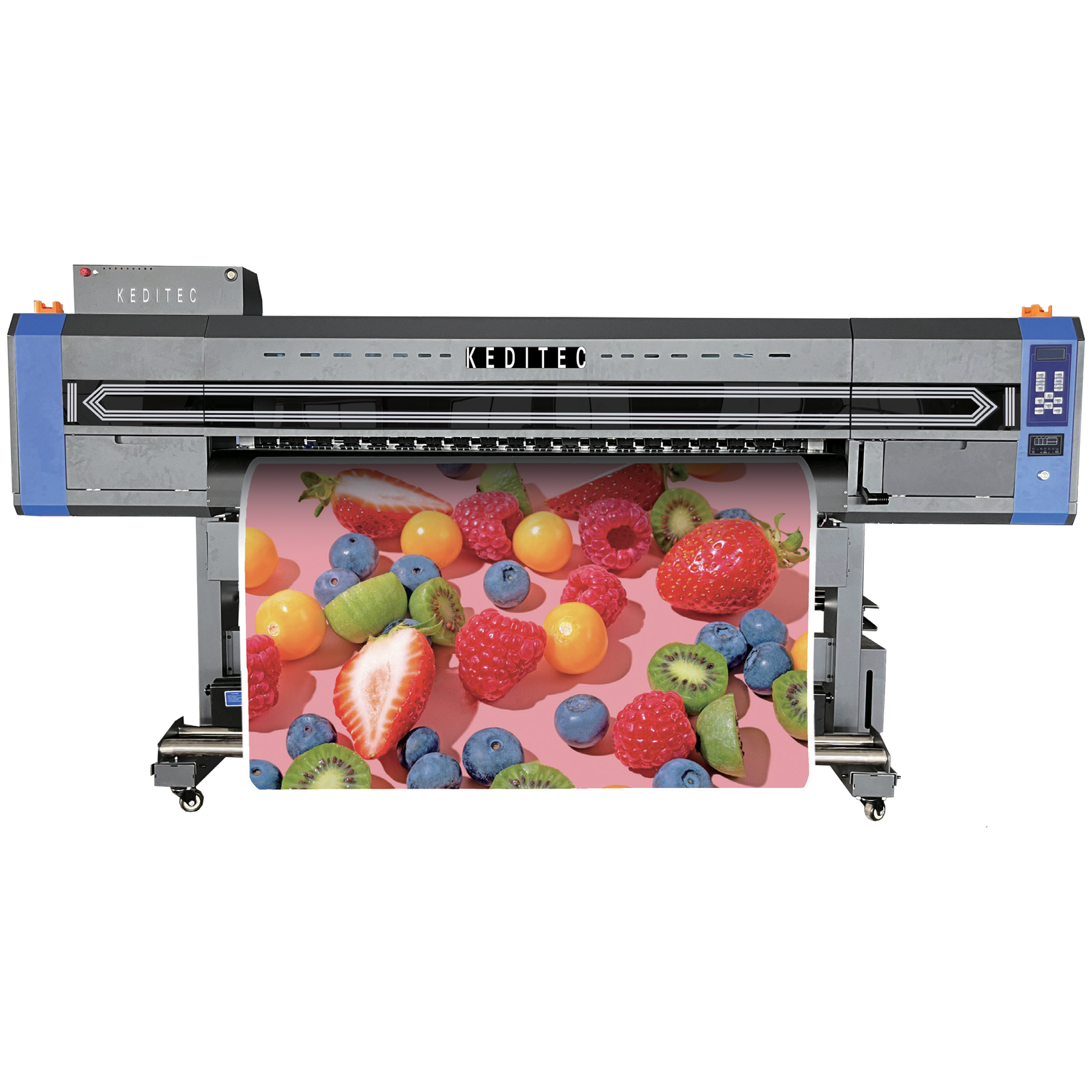

Keditec K2-18UV 1.8m LED-UV Printer
- 1,800 mm printing width with an optional 1,620 mm configuration.
- Dual i1600-U1 printheads with optional i3200-U1 printheads.
- CMYK or white plus CMYK printing with resolutions up to 2,400 dpi.
- Water-cooled UV curing, automatic take-up and a 500 ml bulk ink supply system.
Finance Available
Get the equipment you need now and pay monthly.
Available for qualifying businesses. Speak to our team to arrange a quote.
| Printer Technology | UV |
|---|
The Keditec K2-18UV UV Printer provides a wide-format UV printing solution with a choice of CMYK or white plus CMYK ink configurations.
With a printing width of 1,800 mm and an optional 1,620 mm configuration, the K2-18UV supports different production requirements. It uses dual i1600-U1 printheads, with i3200-U1 printheads available as an option, and offers a maximum printing resolution of 2,400 dpi.
A bulk ink supply system with a 500 ml ink tank supports ink delivery, while a water-cooled UV lamp provides curing. The THK precision rail, adjustable pinch rollers and automatic take-up system help maintain controlled media movement throughout printing.
Key Features
- Printing width of 1,800 mm, with a 1,620 mm option
- Maximum media width of 1,820 mm on the standard configuration
- Maximum media thickness of 1 mm
- Maximum media weight of 60 kg
- Dual i1600-U1 printheads
- Optional i3200-U1 printheads
- Piezoelectric inkjet printing technology
- Maximum printing resolution of 2,400 dpi
- CMYK or white plus CMYK ink configurations
- Bulk ink supply system with a 500 ml ink tank
- Water-cooled UV curing lamp
- THK precision rail
- Adjustable pinch rollers
- Automatic take-up system
- Moisturising and cleaning assembly
- LED backlight
- Ethernet connectivity
Designed for Flexible UV Printing
The K2-18UV combines a choice of ink configurations with roll-fed media handling. White ink availability extends the range of printing approaches, while automatic take-up and UV curing support an organised production workflow.
Specifications are subject to change without prior notice.
| Model | K2-18UV |
|---|---|
| Printer Type | UV printer |
| Printheads | Dual i1600-U1; i3200-U1 optional |
| Printing Technology | Piezoelectric inkjet |
| Printing Width | 1,800 mm; 1,620 mm optional |
| Maximum Media Width | 1,820 mm; 1,620 mm optional |
| Maximum Media Thickness | 1 mm |
| Maximum Media Weight | 60 kg |
| Ink Type | UV ink |
| Ink Configurations | CMYK / white + CMYK |
| Ink Supply System | Bulk ink supply system with a 500 ml ink tank |
| Maximum Printing Resolution | 2,400 dpi |
| Curing Unit | Water-cooled UV lamp |
| Interface | Ethernet |
| Power Supply | AC 220 V ±10%, 50/60 Hz |
| Machine Dimensions with Stand (W × D × H) | 3,000 × 1,000 × 1,800 mm |
| Machine Weight with Stand | 320 kg |
| Package Dimensions (W × D × H) | 3,360 × 760 × 1,040 mm |
| Package Weight | 600 kg |
| Operating Environment | 15–32°C; 35–80% relative humidity, non-condensing |
| Power-Off Environment | 5–40°C; 20–80% relative humidity, non-condensing |
| Included Accessories | Data cable, media presser, user manual, maintenance tank and ink cartridges |
