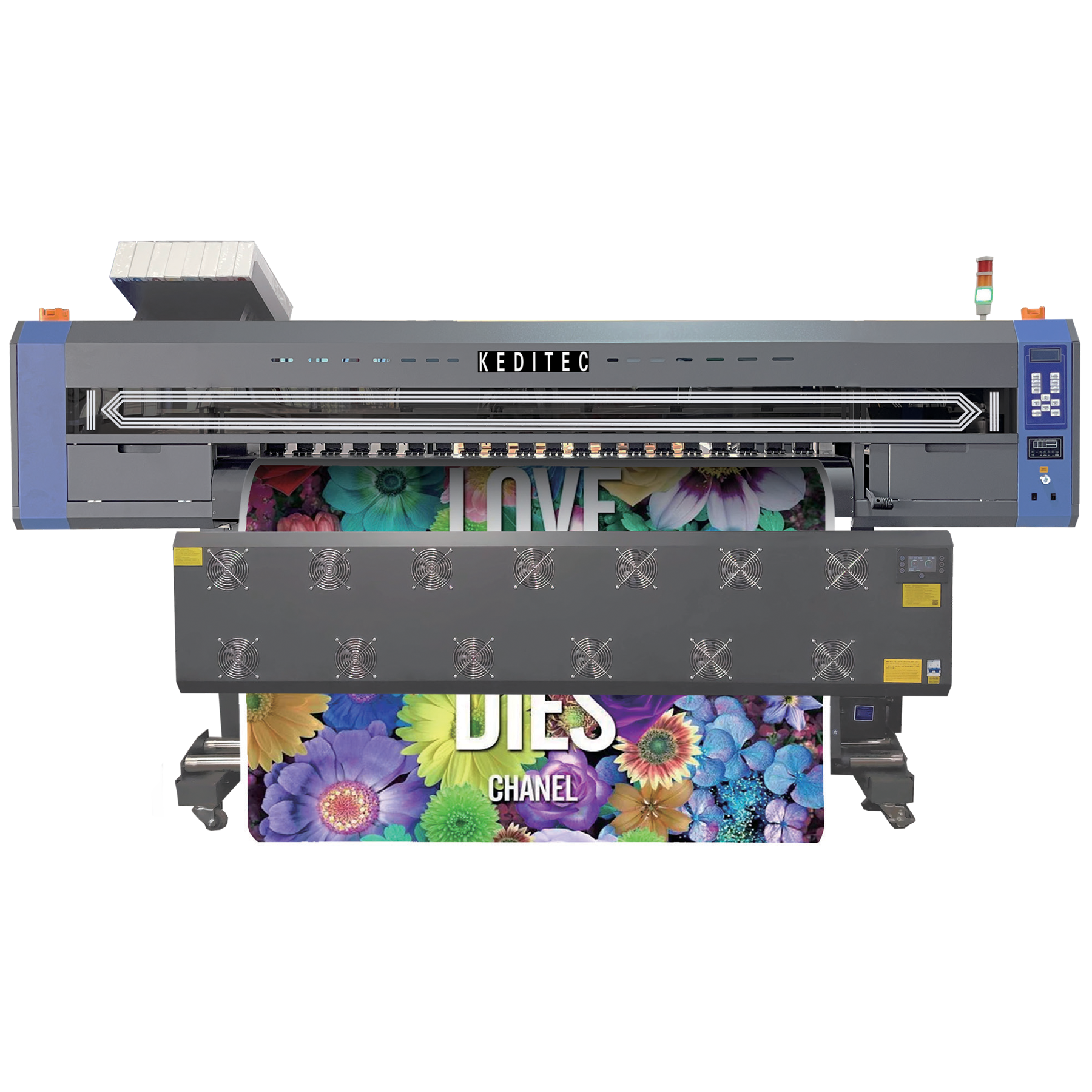

Keditec K4-18S Eco Solvent Printer
- 1,800 mm print width for wide-format signage and display production
- Four Epson i3200-E1 printheads with resolution up to 2,400 dpi
- Print speeds up to 85 m²/h in 4-pass mode
- Integrated post heater, infrared dryer and fan system with a 1.5 L continuous ink supply system
Finance Available
Get the equipment you need now and pay monthly.
Available for qualifying businesses. Speak to our team to arrange a quote.
| Printer Technology | Eco-Solvent |
|---|
The Keditec K4-18S Eco Solvent Printer offers wide-format graphics production with a print width of up to 1,800 mm. Its four Epson i3200-E1 printheads support a maximum resolution of 2,400 dpi, making it a practical platform for businesses producing signage, displays and promotional graphics.
With speeds of up to 85 m²/h at 4-pass, 360 × 2,400 dpi, the K4-18S provides a choice of 4-pass, 6-pass and 8-pass modes. Available ink configurations include CMYK and CMYK with light cyan, light magenta, light black and red, supported by a continuous ink supply system with 1.5 L ink tanks.
The media-handling system combines a precision quiet guide rail, high-stability tensioning pulley system and multi-stage pinch rollers. An integrated post heater, infrared dryer and fan system assist drying, while a moisturising and cleaning assembly supports printhead maintenance.
Key Features
- Print width of up to 1,800 mm
- Four Epson i3200-E1 printheads
- Piezoelectric inkjet printing technology
- Maximum print resolution of 2,400 dpi
- Print speeds up to 85 m²/h in 4-pass mode
- 6-pass printing at 62 m²/h
- 8-pass printing at 50 m²/h
- Eco solvent ink technology
- CMYK or CMYK + Lc + Lm + Lk + R ink configurations
- Continuous ink supply system with 1.5 L ink tanks
- Precision quiet guide rail
- High-stability tensioning pulley system
- Multi-stage pinch roller structure
- Moisturising and cleaning assembly
- Advanced heating control
- Integrated post heater, infrared dryer and fan system
- Accepts media up to 1,820 mm wide and 1.5 mm thick
- Maximum media weight of 60 kg
- Ethernet connectivity
- RIP software included
Designed for Wide-Format Signage Production
The K4-18S combines a 1.8 m print width with four-head output for businesses handling a range of signage and display jobs on compatible eco solvent media. Its selectable print modes and ink configurations provide flexibility across different production requirements.
Specifications are subject to change without prior notice.
| Model | Keditec K4-18S |
|---|---|
| Printer Type | Eco solvent printer |
| Printing Technology | Piezoelectric inkjet |
| Printheads | 4 × Epson i3200-E1 |
| Maximum Print Width | 1,800 mm |
| Maximum Print Resolution | 2,400 dpi |
| Print Speed – 4 Pass | 85 m²/h at 360 × 2,400 dpi |
| Print Speed – 6 Pass | 62 m²/h at 720 × 1,800 dpi |
| Print Speed – 8 Pass | 50 m²/h at 720 × 2,400 dpi |
| Ink Type | Eco solvent ink |
| Ink Colour Configurations | CMYK or CMYK + light cyan + light magenta + light black + red |
| Ink Supply System | Continuous ink supply system with 1.5 L ink tanks |
| Maximum Media Width | 1,820 mm |
| Maximum Media Thickness | 1.5 mm |
| Maximum Media Weight | 60 kg |
| Media Heating and Drying | Integrated post heater, infrared dryer and fan system |
| Printhead Maintenance | Moisturising and cleaning assembly |
| Interface | Ethernet |
| Power Supply | AC 220 V ±10%, 50/60 Hz |
| Operating Environment | 15–32°C; 35–80% relative humidity, non-condensing |
| Power-Off Environment | 5–40°C; 20–80% relative humidity, non-condensing |
| Machine Dimensions with Stand | 3,000 × 1,000 × 1,800 mm (W × D × H) |
| Machine Weight with Stand | 320 kg |
| Package Dimensions | 3,340 × 760 × 1,100 mm (W × D × H) |
| Package Weight | 600 kg |
| Supplied Accessories | Printheads, USB cable, media clamp, manual, drain bottle, ink cartridges and RIP software |
