Keditec K600 Super High Volume UV Printing Solution
- Four i3200 printheads with resolutions up to 2,400 dpi.
- Supports media up to 600 mm wide and 1.5 mm thick.
- CMYK, white and varnish printing with automatic white ink stirring.
- Integrated laminating device and dual UV LED curing lights.
Finance Available
Get the equipment you need now and pay monthly.
Available for qualifying businesses. Speak to our team to arrange a quote.
| Printer Technology | UV |
|---|

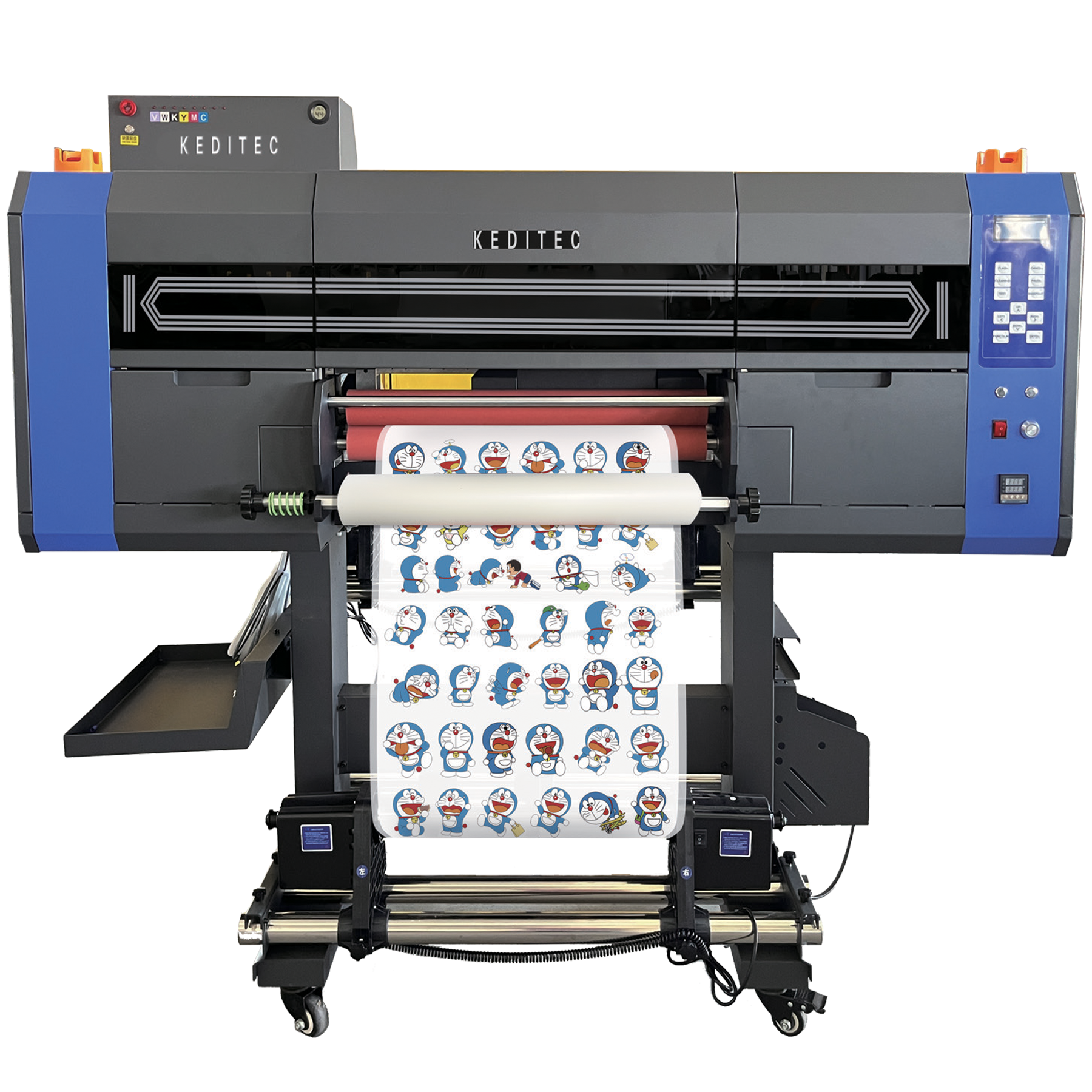

The Keditec K600 Super UV Printer combines UV printing with an integrated laminating device for graphics production.
Equipped with four i3200 printheads, the K600 Super supports media up to 600 mm wide and 1.5 mm thick. It offers a maximum printing resolution of 2,400 dpi and a quoted speed of 7 m²/h at 8 pass with 720 × 1,200 dpi resolution.
The printer supports CMYK, white and varnish, with an additional G configuration listed in the brochure. A colour siphon ink supply system and automatic white ink stirring support ink management, while dual UV LED lights provide curing.
Key Features
- Four i3200 printheads
- Piezoelectric inkjet printing technology
- Supports media up to 600 mm wide
- Maximum media thickness of 1.5 mm
- Maximum printing resolution of 2,400 dpi
- 8-pass printing at 7 m²/h with 720 × 1,200 dpi resolution
- CMYK, white and varnish ink configuration
- Additional CMYK + white + varnish + G configuration listed
- Colour siphon ink supply system
- Automatic white ink stirring
- Dual UV LED curing lights
- Integrated laminating device
- Safety-focused structural design
- Smart operation features
- Gigabit Ethernet connectivity
Designed for Printing and Lamination
The K600 Super brings UV printing and a laminating device together in one machine. Its white and varnish capabilities provide finishing flexibility, while automatic white ink stirring supports routine ink management.
Specifications are subject to change without prior notice.
| Model | K600 Super |
|---|---|
| Printer Type | UV printer with laminating device |
| Printheads | Four i3200 printheads |
| Printing Technology | Piezoelectric inkjet |
| Maximum Media Width | 600 mm |
| Maximum Media Thickness | 1.5 mm |
| Ink Type | UV ink |
| Ink Configurations | CMYK + white + varnish / CMYK + white + varnish + G |
| Ink Supply System | Colour siphon with automatic white ink stirring |
| Maximum Printing Resolution | 2,400 dpi |
| 8-Pass Printing Speed | 7 m²/h at 720 × 1,200 dpi |
| Ink Curing Method | Dual UV LED lights |
| Interface | Gigabit Ethernet |
| Power | 3,500 W |
| Power Supply | AC 220 V ±10%, 50/60 Hz |
| Machine Weight with Stand | 200 kg |
| Operating Environment | 15–32°C; 35–80% relative humidity, non-condensing |
| Power-Off Environment | 5–40°C; 20–80% relative humidity, non-condensing |
