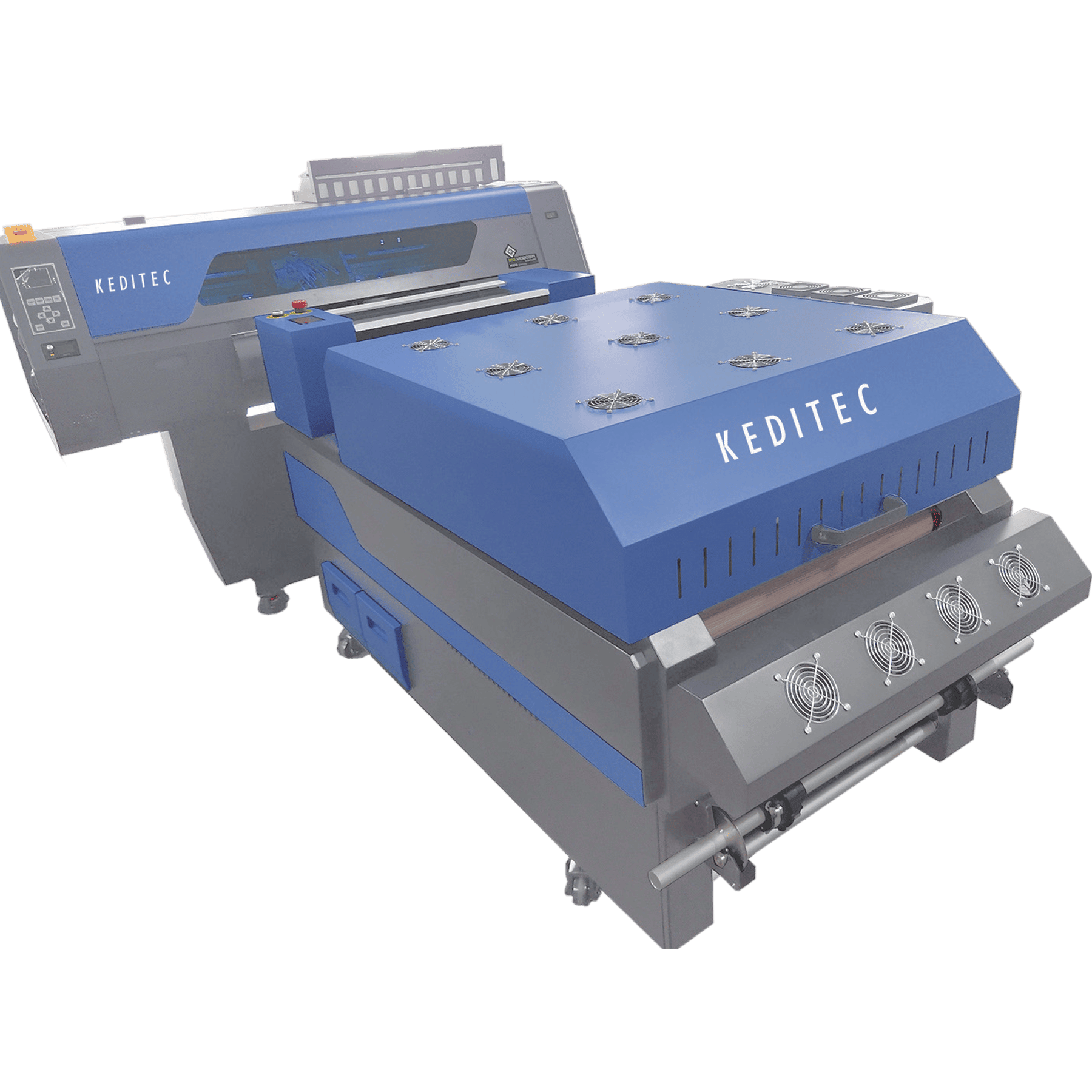

Keditec K2-60DTF DTF Printer
- 600 mm print width for direct-to-film transfer production
- Dual printheads with five-colour printing using transfer pigment inks
- Continuous ink supply system with a listed capacity of 220 ml
- Controlled powder application and multi-stage heating with automatic take-up
Finance Available
Get the equipment you need now and pay monthly.
Available for qualifying businesses. Speak to our team to arrange a quote.
| Printer Technology | DTF |
|---|
The Keditec K2-60DTF DTF Printer provides a 600 mm print width for businesses producing garment and textile transfers. Its dual printheads use piezoelectric inkjet technology and transfer pigment inks to print onto transfer film.
The K2-60DTF supports five-colour printing with a continuous ink supply system and ICC or density curve colour management. A THK quiet guide rail, tension bar media feeding system and electric pinch roller controls support media handling, while nozzle compensation technology and automatic moisturising assist printer operation.
The associated powder and colour fixing machine offers powder shaking, direction and volume control. Multi-stage heating, drying, cold-air cooling and automatic induction winding support the transfer preparation process.
Key Features
- 600 mm print width
- Dual printheads
- Piezoelectric inkjet printing technology
- Five-colour ink configuration
- Transfer pigment inks
- Continuous ink supply system with a listed capacity of 220 ml
- Accepts transfer film up to 620 mm wide
- Maximum media thickness of 1 mm
- ICC or density curve colour management
- THK quiet guide rail
- Tension bar media feeding system
- Electric pinch roller control system
- Nozzle compensation technology
- Upgraded damper heating
- Automatic moisturising function
- Adjustable powder direction and volume control
- Multi-stage heating and drying system
- Cold-air fan function
- Automatic induction winding
- Powder shaker configuration with built-in smoke filter listed
- RJ-45/LAN connectivity
- MainTop and PhotoPrint RIP software listed
Designed for Textile Transfer Production
The K2-60DTF combines a 600 mm printing format with controlled powder application and heating for garment decoration workflows. The brochure lists transfer applications including cotton, nylon, synthetic fibres, leather, swimwear, wetsuits, PVC and EVA.
Specifications are subject to change without prior notice.
| Model | Keditec K2-60DTF |
|---|---|
| Printer Type | Direct-to-film printer |
| Printing Technology | Piezoelectric inkjet |
| Number of Printheads | 2 |
| Print Width | 600 mm |
| Maximum Printer Media Width | 620 mm |
| Maximum Media Thickness | 1 mm |
| Printing Media | Transfer film |
| Ink Type | Transfer pigment ink |
| Ink Colours | 5 colours |
| Ink Supply System | Continuous ink supply system, 220 ml capacity listed |
| Colour Management | ICC or density curve |
| Media Heating System | Powder and colour fixing machine |
| Interface | RJ-45/LAN |
| RIP Software Listed | MainTop and PhotoPrint |
| Printer Power Supply | 220/110 V, 10 A, 50/60 Hz |
| Operating Temperature | 20–32°C |
| Printer Dimensions with Stand | 1,840 × 780 × 1,400 mm (L × W × H) |
| Printer Weight | 165 kg |
| Printer Packing Dimensions | 1,900 × 930 × 1,320 mm (L × W × H) |
| Powder Shaker Media Width | 0–600 mm |
| Transfer Applications Listed | Nylon, synthetic fibres, cotton, leather, swimwear, wetsuits, PVC and EVA |
| Powder Control | Powder shaking, powder direction and powder volume control |
| Heating and Drying Functions | Multi-stage heating, drying and cold-air fan |
| Rewind Function | Automatic induction winding |
| Powder Shaker Rated Voltage | 220 V |
| Powder Shaker Rated Current | 20 A |
| Powder Shaker Rated Power | 3.42 kW |
| Powder Shaker Power Consumption | 1–2.5 kW |
| Powder Shaker Dimensions | 1,780 × 980 × 1,040 mm (L × W × H) |
| Powder Shaker Dimensions with Built-In Smoke Filter | 1,780 × 1,100 × 1,040 mm (L × W × H) |
| Powder Shaker Net Weight | 210 kg |
| Powder Shaker Gross Weight | 235 kg |
| Powder Shaker Packing Dimensions | 1,900 × 1,120 × 1,180 mm (L × W × H) |
