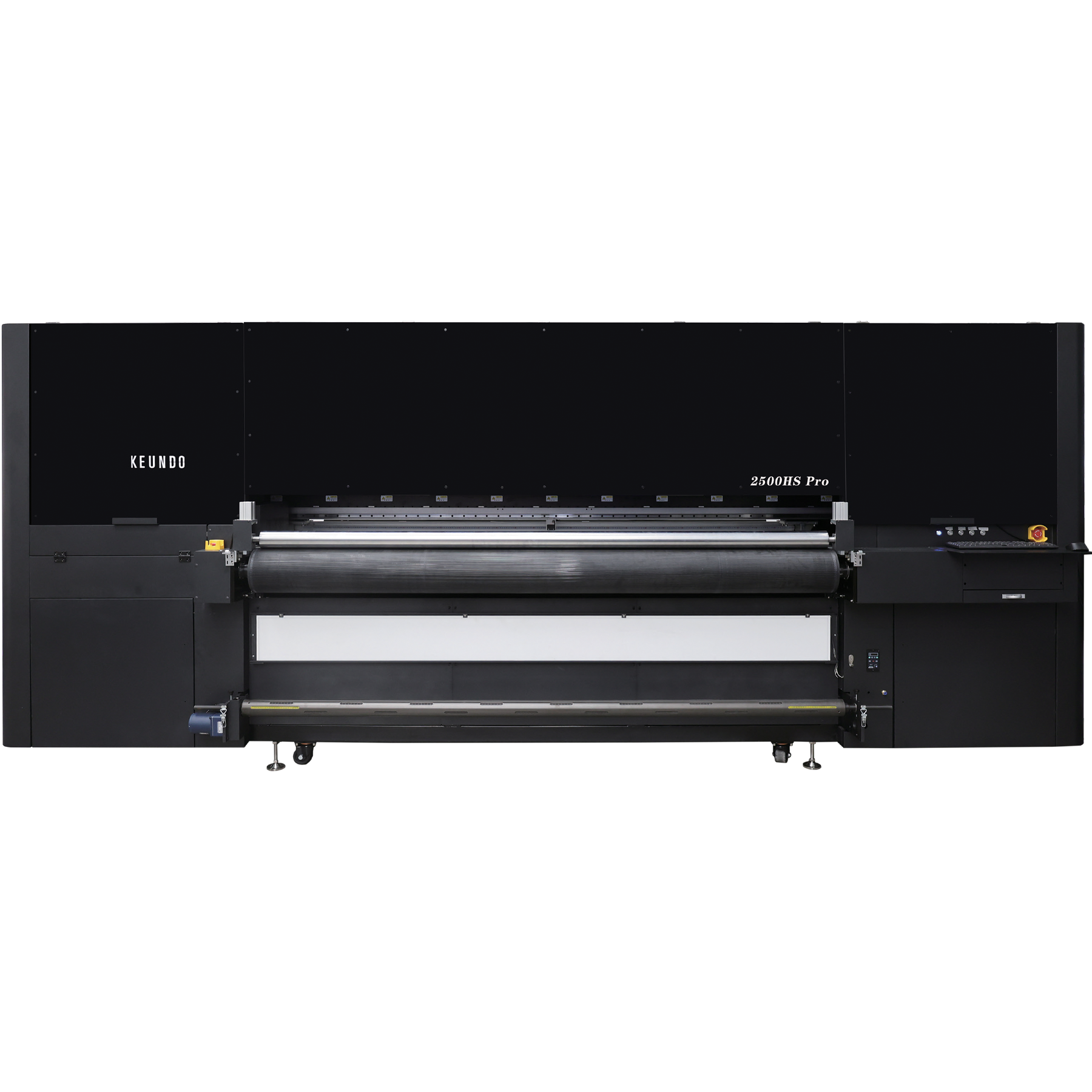

Keundo SQ-2500HS Pro UV Flatbed Printer
- Hybrid UV printer designed for both roll and sheet media with one-click board switching
- Supports CMYK + White + CMYK, White + CMYK + Varnish and full-colour hybrid UV printing
- Available with Ricoh G6 or G5 printhead configurations for high-speed production output
- Suitable for signage, decorative materials, labels, wallpaper, PET, PVC and more
Finance Available
Get the equipment you need now and pay monthly.
Available for qualifying businesses. Speak to our team to arrange a quote.
About Keundo
Keundo Equipment
KEUNDO delivers advanced large format printing solutions built for modern print and signage businesses. From UV flatbed and hybrid printers to high-performance production equipment, the brand combines industrial reliability, precision engineering and outstanding print quality to help businesses scale production and expand their creative capabilities.
Large Format Printing
Industrial Print Solutions
High-Speed Production
Technical Specifications
| Model | 2500HS Pro |
|---|---|
| Print Head | Ricoh G6 / G5 (Gray scale piezoelectric inkjet technology, Ricoh 5PL) |
| Number of Print Heads | 5 heads standard (5-24 heads optional) |
| Printing Thickness | 1 - 40 mm |
| Resolution | 600dpi / 900dpi / 1200dpi / 1800dpi / 2400dpi |
| Software | PhotoPrint (ONYX optional) |
| Media Weight | 150kg paper roll, standard configuration includes front and rear air shafts (35mm diameter) |
| Ink | Type: UV Ink |
| Color: CMYK / Lc / Lm / W / V | |
| Print Wide Format | ≤ 2550mm |
| Color Control | ICC compliant with curve and density adjustment |
| Interface | USB 3.0 |
| Voltage | AC220V (±10%), 50/60Hz |
| Working Environment | Temperature: 18°C - 29°C |
| Humidity: 50% - 80% | |
| Power Consumption | Working state: 5000W |
| Sleep state: 600W | |
| Machine Size (L × W × H) | Bare metal: 4940 × 1550 × 2105 mm |
| Dimensions with extension platform: 4924 × 3550 × 2105 mm | |
| Packaging: 5100 × 1650 × 1800 mm | |
| Machine Weight | 1800kg |
