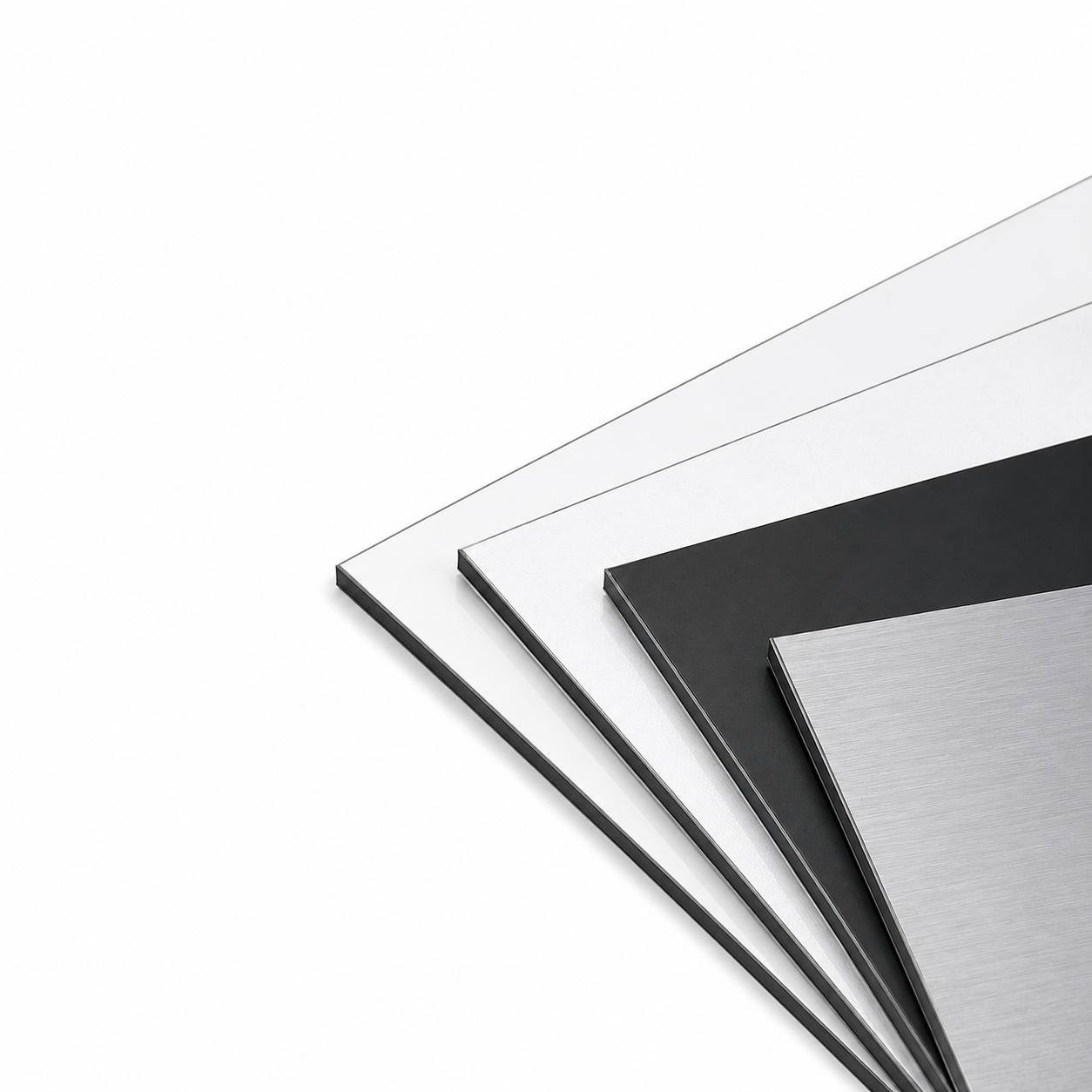

Intalite Aluminium Composite Material – ACM
Intalite is a premium-quality aluminium composite panel featuring two 0.20mm aluminium sheets bonded to a polyethylene core. It provides a lightweight, smooth surface for signage and direct-printing applications.
Description
Intalite is a premium-quality aluminium composite panel featuring two 0.20mm aluminium sheets sandwiching a polyethylene core.
It provides a lightweight and versatile panel for a variety of printed signage and display applications.
Suitable Applications
- Signage applications
- UV flatbed printing
- Screen printing
Construction
- Two 0.20mm aluminium sheets
- Polyethylene core
- 3mm total panel thickness
- 20-micron painted surface
- PE-coated finish
Warranties
- Two-year internal and external warranty on the painted surface
- Five-year material warranty
- Brushed and mirrored variations are subject to a two-year internal warranty only
The warranty period applies worldwide, except where the product is installed within 30° north or south of the equator. In these locations, the warranty period will be one-half of the stated period.
Technical Specifications
| Properties | Specifications |
|---|---|
| Thickness | 3mm |
| Weight | 3.5kg/m² |
| Size | 3050 x 1500 |
| Paint Thickness | 20 microns |
| Temperature Resistance | -50°C – 80°C |
| Fire Performance | EN13501-1:2007 class D-s2-d0 |
Specifications are subject to change without prior notice.
