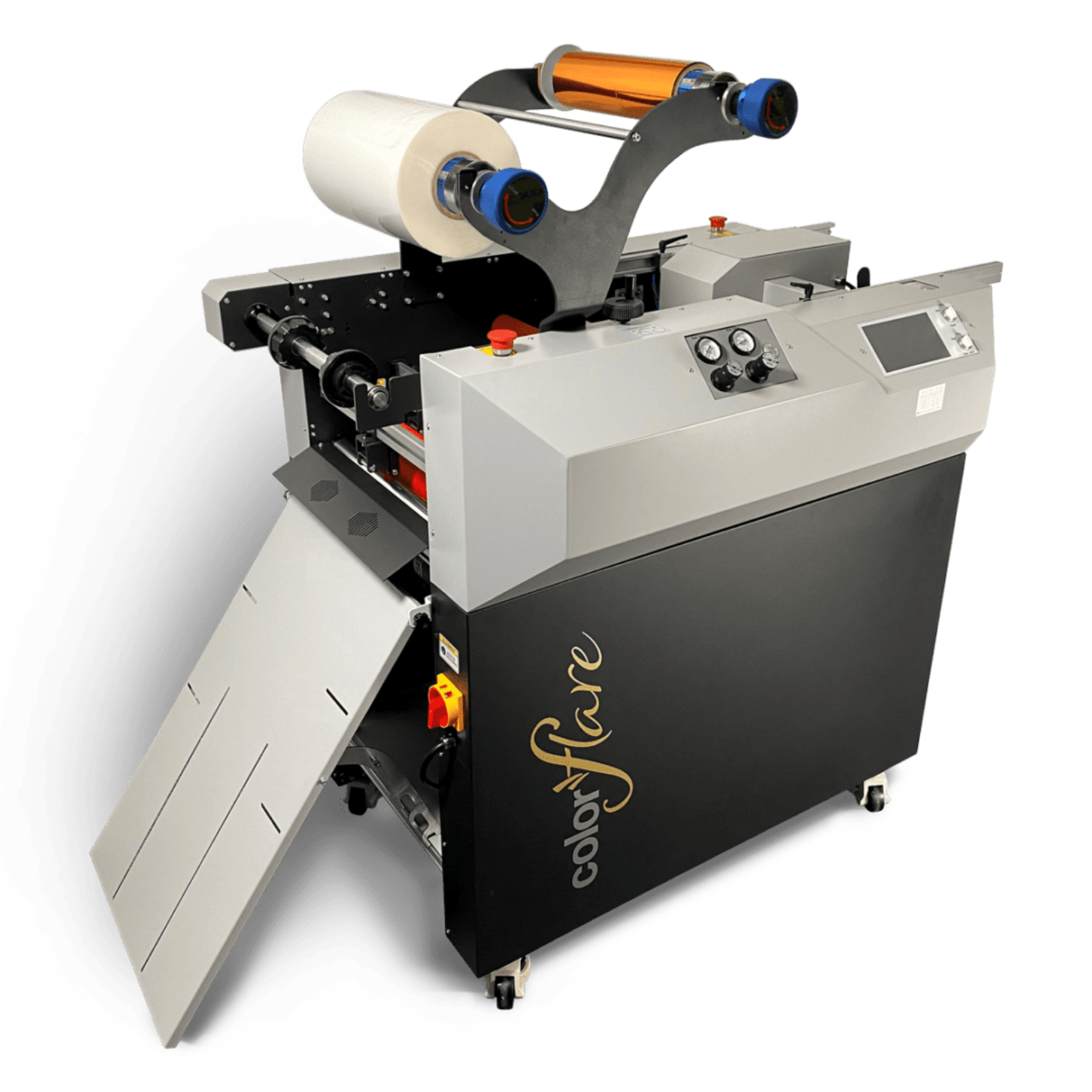

Intec ColorFlare CF2500 Foiling and Lamination System
The Intec CF2500 Automatic feeding lamination machine delivers an all-in-one automatic feeding solution for both lamination and foiling. With its unique oil roller heating system providing consistent temperatures, lamination results are improved and energy consumption is reduced.
Its simple-to-set-up process offers reliable feeding and speedy production – with fully controllable pressure and heat processes, devised to deliver optimum results with today’s print output.
Description
| Specification | Details |
|---|---|
| Media sizes | Max: 390 x 715mm |
| Media thickness | 130gsm to 400gsm |
| Lamination speed | 1m/min ~ 15m/min |
| Laminate/Foil thickness | 20–250 micron |
| Automatic feeding | Yes |
| Pile height | Maximum: 280mm / 1400 sheets |
| Feeding mode | Dual air suction |
| Laminating temperature | Max: 130°C |
| Roller pressure | Hydraulic – up to 1 metric tonne (970kg) |
| Laminate/Foil core size | 3″ (76mm) |
| Laminating rollers | Upper: High gloss chromium. Lower: silicon rubber |
| Power supply | 220~240V 50/60Hz, 3200W |
| Weight (unpacked) | 380kgs |
| Dimensions WDH | 1730 x 800 x 1480mm |
About Intec
Intec delivers innovative cutting, creasing, folding and finishing solutions including flatbed cutters and digital foilers. Their systems are designed for short-run packaging, custom labels, and signage with impactful results. Intec supports efficient, professional-quality production across print businesses.
