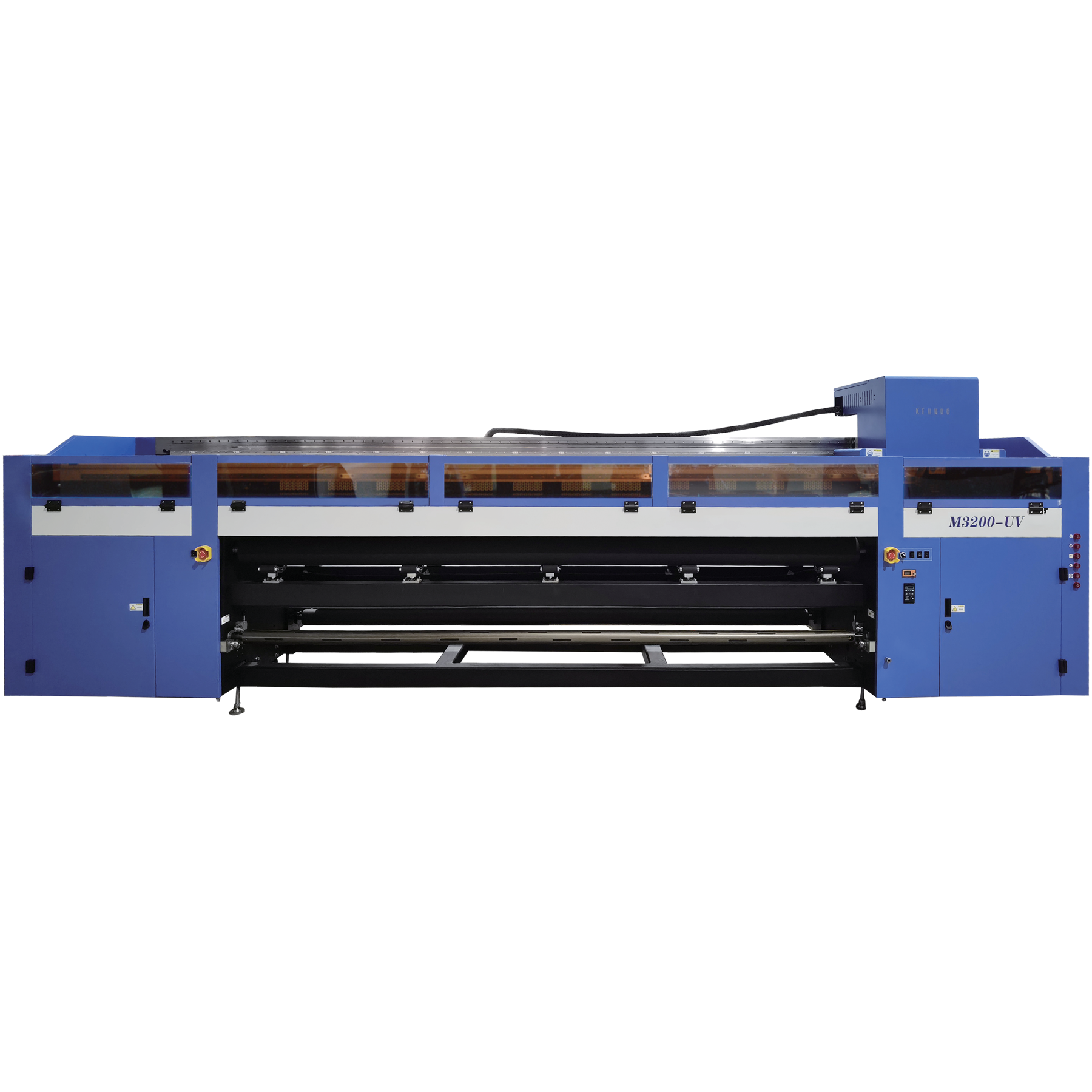

Keundo M3200UV Industrial UV Printer
- 3.2m UV roll-to-roll printer designed for high-speed, high-precision wide-format production
- Supports CMYK / Lc / Lm / White / Varnish with optional fluorescent ink colours
- Available with Ricoh Gen5 or Gen6 printhead configurations
- Stable media feeding and LED UV curing system for consistent print quality across flexible media
Finance Available
Get the equipment you need now and pay monthly.
Available for qualifying businesses. Speak to our team to arrange a quote.
About Keundo
Keundo Equipment
KEUNDO delivers advanced large format printing solutions built for modern print and signage businesses. From UV flatbed and hybrid printers to high-performance production equipment, the brand combines industrial reliability, precision engineering and outstanding print quality to help businesses scale production and expand their creative capabilities.
Large Format Printing
Industrial Print Solutions
High-Speed Production
Technical Specifications
| Model | M3200-UV |
|---|---|
| Head Type | Ricoh Gen5 / Gen6 |
| Head Control | Variable Ink Droplet |
| Head Arrangement | Two Line Print Heads 3 x 2 (6 pcs) |
| Three Line Print Heads 3 x 3 (9 pcs) | |
| Head Number | 4 - 12 pcs optional |
| Head Cleaning | Manual Positive and Negative Pressure Cleaning Device |
| RIP Software | ONYX |
| Ink | Type: LED UV Ink |
| Color: C / M / Y / K / LC / LM / W / Varnish | |
| Optional fluorescent colours: FM / FG / FY / FO | |
| Ink Capacity: 1L | |
| Media | Type: Mantle, car sticker, flex, etc. |
| Max Printing Width: 3200mm | |
| Transmission: Motor high resolution rubber covered roller transfer system | |
| Drying System | LED UV Light |
| Printing Speed | Production Mode: 45sqm/h (G5) / 63sqm/h (G6) |
| Quality Mode: 36sqm/h (G5) / 50sqm/h (G6) | |
| High Quality Mode: 25sqm/h (G5) / 35sqm/h (G6) | |
| Production Mode: 65sqm/h (G5) / 91sqm/h (G6) | |
| Quality Mode: 48sqm/h (G5) / 67sqm/h (G6) | |
| High Quality Mode: 32sqm/h (G5) / 45sqm/h (G6) | |
| Transmission | USB 3.0 |
| Power Supply | AC220V (±10%), 50/60Hz |
| Power Consumption | 6KW |
| Environment | Temperature: 18°C - 29°C |
| Humidity: 50% - 80% | |
| Dimension | Printer dimensions: 5710(W) × 1124(D) × 1561(H) mm |
| Packing dimensions: 5910(W) × 1150(D) × 2050(H) mm | |
| Weight | Printer weight: 1850kg |
| Packing weight: 2500kg |
