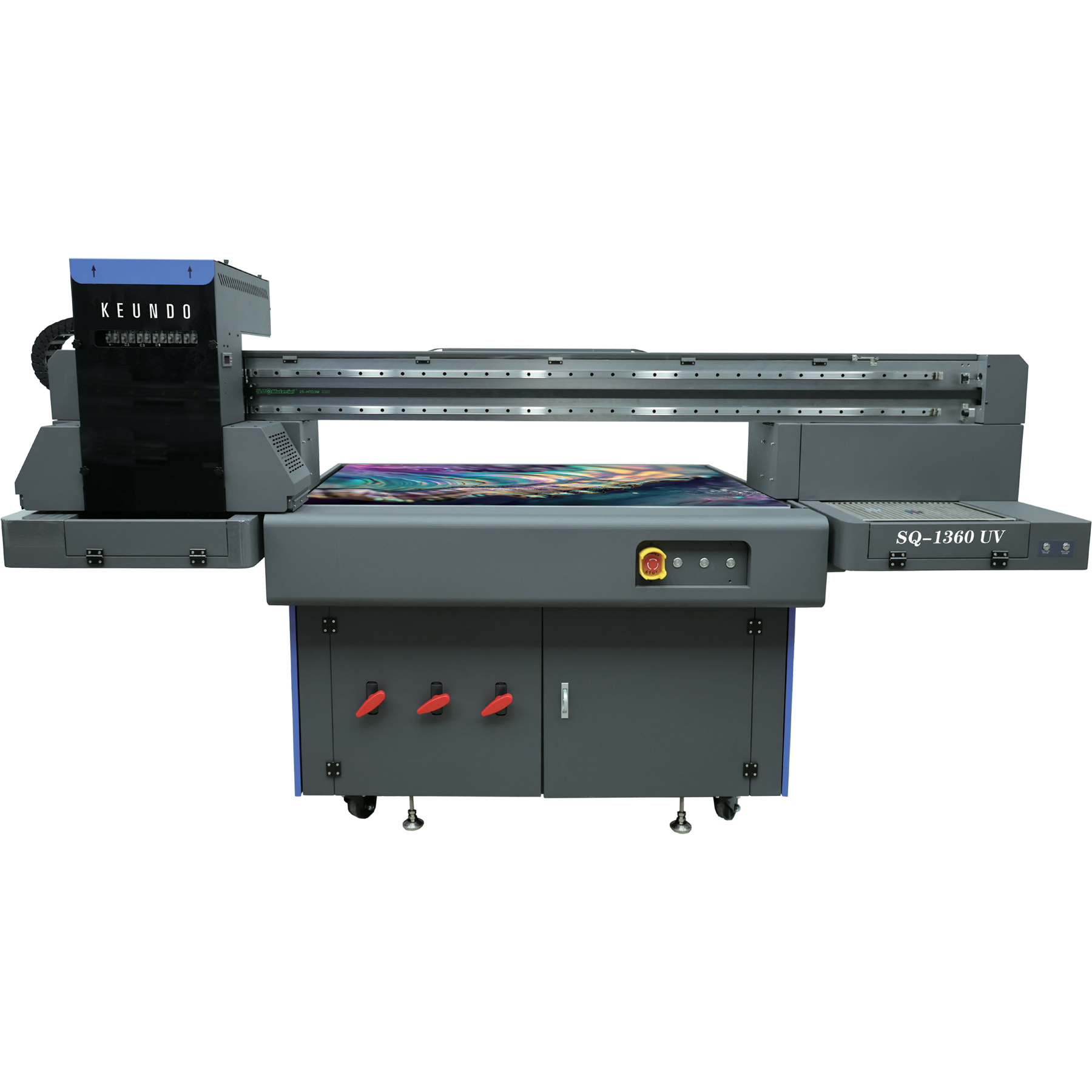

Keundo SQ-1360 UV Flatbed Printer
- Compact multifunctional UV flatbed printer designed for small-format rigid and flexible media
- Supports CMYK / White / Varnish for vibrant colour and specialty print applications
- Available with G6 × 4 or Epson I3200-U1 / I1600-U1 × 3 printhead configurations
- Suitable for media up to 200mm thick with precise vacuum control and stable feeding
Finance Available
Get the equipment you need now and pay monthly.
Available for qualifying businesses. Speak to our team to arrange a quote.
About Keundo
Keundo Equipment
KEUNDO delivers advanced large format printing solutions built for modern print and signage businesses. From UV flatbed and hybrid printers to high-performance production equipment, the brand combines industrial reliability, precision engineering and outstanding print quality to help businesses scale production and expand their creative capabilities.
Large Format Printing
Industrial Print Solutions
High-Speed Production
Technical Specifications
| Model | SQ1360 UV |
|---|---|
| Print Head | G6 × 4 (Epson I3200-U1 / I1600-U1 × 3) |
| Printing Technology | Piezoelectric inkjet, variable dot printing density, Ricoh 3.5PL / 5PL |
| Printing Size | Maximum printing area: 1300mm × 600mm |
| Resolution | 600DPI / 900DPI / 1200DPI |
| Number of Printheads | Optional 3-4 printheads |
| Software | Photoprint (ONYX optional) |
| Ink | Type: UV Ink |
| Color: CMYK / W / V | |
| Media Thickness | 1-200mm |
| Negative Pressure System | Double digital adjustment, uniform vacuum system |
| Interface | USB 3.0 |
| Printing Speed | G6 (standard with 4 pcs): Draft mode: 18-20㎡/h; Production mode: 12-15㎡/h; High precision mode: 9-11㎡/h |
| I3200 (standard with 3 pcs): Draft mode: 10-12㎡/h; Production mode: 6-8㎡/h; High precision mode: 4-6㎡/h | |
| Power Supply | Maximum power: 5KW, AC220V, 50HZ-60HZ |
| Working Environment | Temperature: 18-28°C / Humidity: 40%-60% (no condensation) |
| Machine Dimensions | 2780mm × 1240mm × 1550mm |
| Machine Weight | 800kg |
