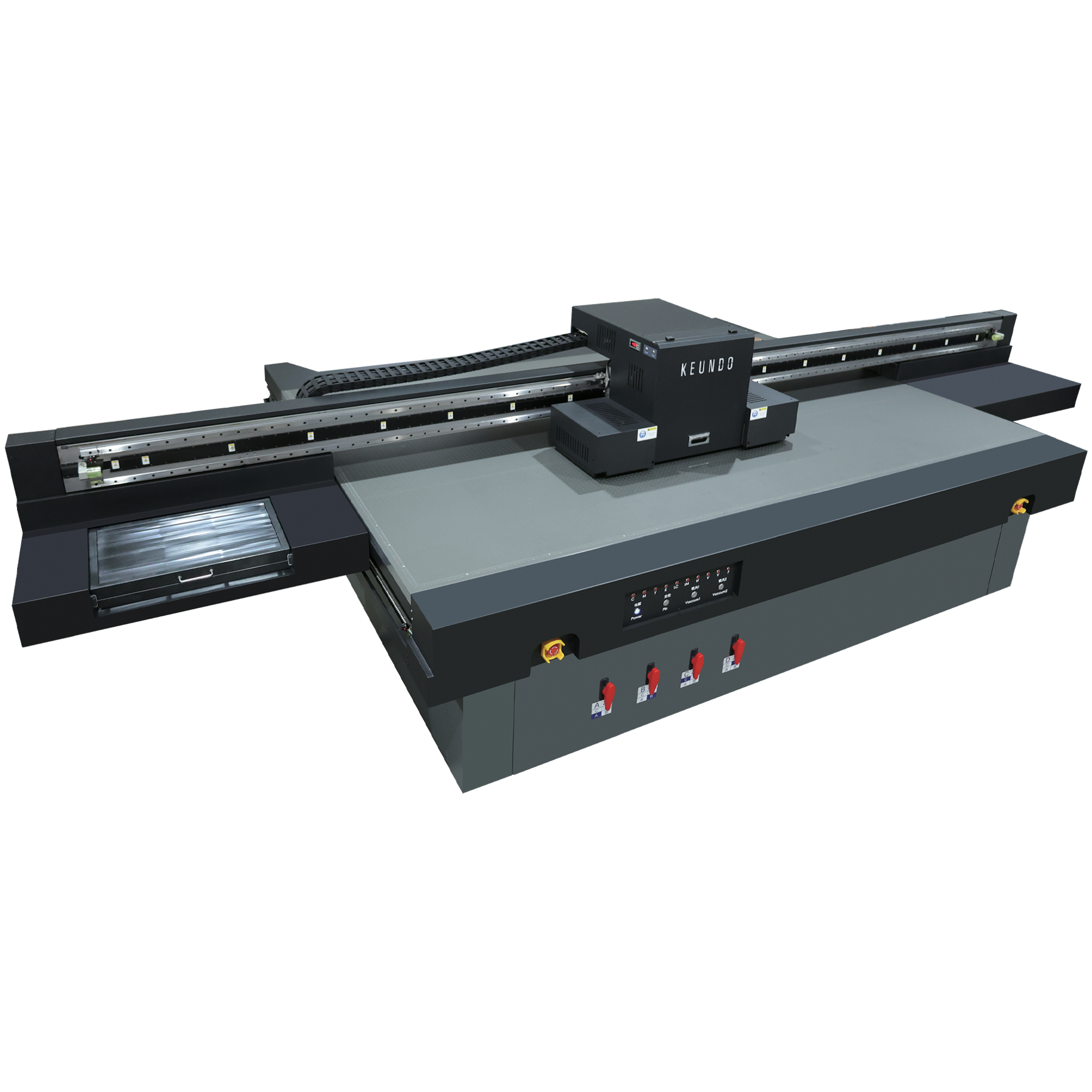

Keundo SQ-3220 UV Flatbed Printer
- Large-format multifunctional UV flatbed printer with a 3200 × 2000mm print area
- Powered by Ricoh G6 printheads for high productivity and precision output
- Supports CMYK / Lc / Lm / White / Varnish for vibrant colour and embossed effects
- Handles both rigid and flexible materials including acrylic, wood, PVC, glass and vinyl
Finance Available
Get the equipment you need now and pay monthly.
Available for qualifying businesses. Speak to our team to arrange a quote.
About Keundo
Keundo Equipment
KEUNDO delivers advanced large format printing solutions built for modern print and signage businesses. From UV flatbed and hybrid printers to high-performance production equipment, the brand combines industrial reliability, precision engineering and outstanding print quality to help businesses scale production and expand their creative capabilities.
Large Format Printing
Industrial Print Solutions
High-Speed Production
Technical Specifications
| Model | SQ-3220 UV |
|---|---|
| Print Head | Ricoh G6 (Ricoh G5 Optional) |
| Number of Printheads | Optional 3 – 16 Printheads |
| Printing Technology | Piezoelectric inkjet, variable dot printing density, Ricoh 5PL |
| Printing Size | 3200mm × 2000mm |
| Printing Resolution | 720x600 dpi / 720x900 dpi / 720x1200 dpi / 720x1800 dpi |
| Ink | Type: UV Ink |
| Color: CMYK / Lc / Lm / W / V | |
| Media Thickness | 1 – 100mm |
| Color Control | Complies with international ICC standards with curve and density adjustment functions |
| Software | Photoprint (ONYX / Caldera Optional) |
| Interface | USB 3.0 |
| Printing Speed | Draft Mode: 4 pass – 29 m²/h |
| Production Mode: 6 pass – 18 m²/h | |
| High Precision Mode: 8 pass – 14.5 m²/h | |
| Power Supply | AC220V (±10%), 50HZ–60HZ |
| Working Environment | Temperature: 18–29°C / Humidity: 50%–80% (no condensation) |
| Machine Dimensions | 5434mm × 2814mm × 1465mm |
| Machine Weight | 2000 kg |
