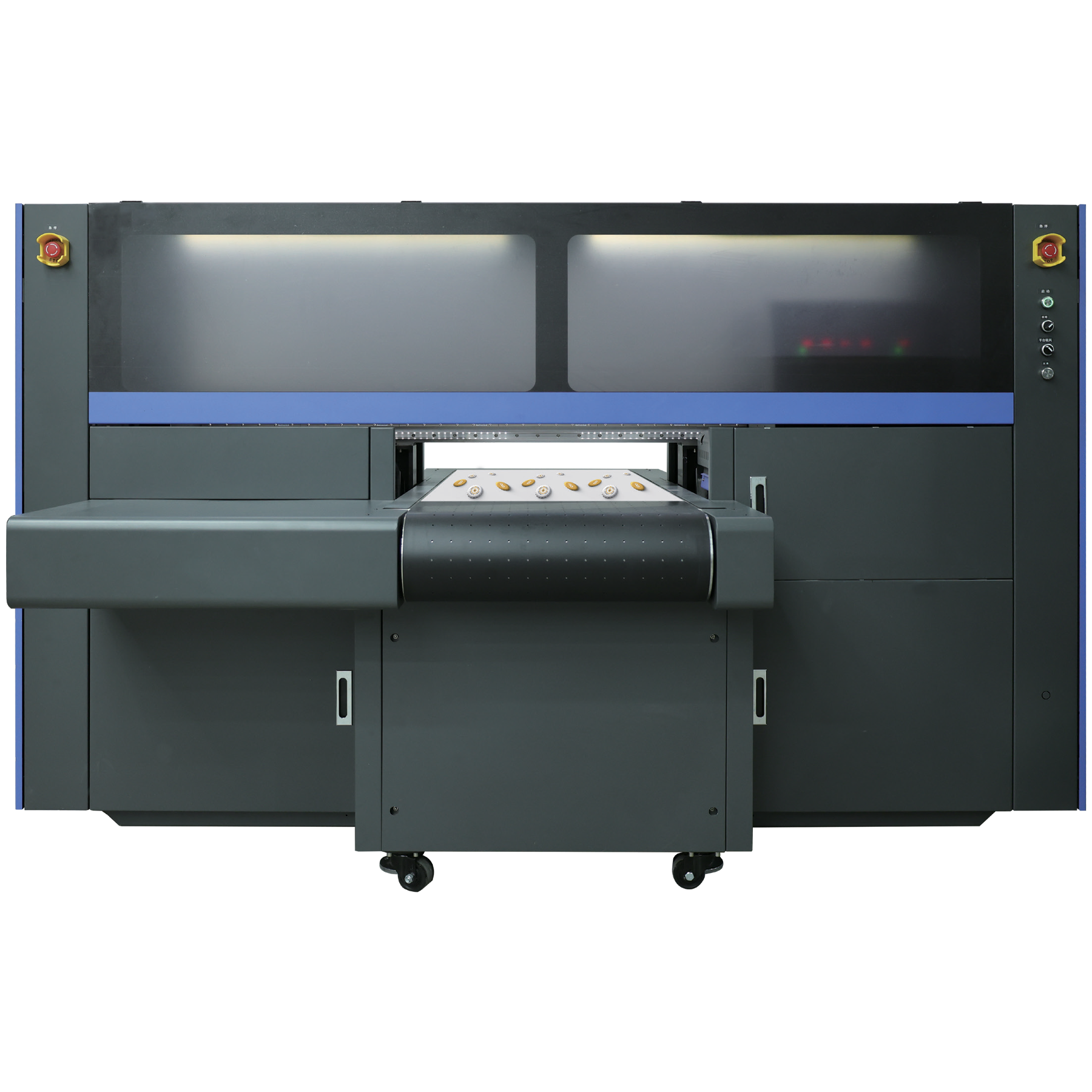

Keundo SQ60 AI Vision Conveyor Belt UV Printer
- AI Vision conveyor belt UV printer designed for automated batch printing of small items
- Advanced visual positioning system allows objects to be placed freely without moulds
- Supports CMYK, White and Varnish UV inks for high-quality industrial printing
- Ideal for printing on materials such as glass, acrylic, metal, wood, ceramics and plastics
Finance Available
Get the equipment you need today and pay monthly.
Finance options available for qualifying businesses. Speak to our team to arrange a quote.
Description
The Keundo SQ60 AI Vision Conveyor Belt Printer is an advanced UV printing solution designed for automated batch printing of small items and customised products. Equipped with an intelligent visual positioning system and conveyor belt workflow, the SQ60 allows operators to place objects freely on the printing platform without the need for positioning molds.
Using AI vision recognition technology, the system automatically scans, identifies and prints designs onto multiple objects simultaneously. This dramatically improves production efficiency compared to traditional UV printing systems that require manual positioning or custom molds.
The printer supports CMYK, White and Varnish UV inks, enabling vibrant colour reproduction, layered printing effects and protective coatings for professional signage, promotional products and customised items.
Thanks to its G6 printhead configuration, the SQ60 delivers high productivity with excellent print quality. The next-generation variable droplet technology allows precise droplet control, enabling detailed printing while maintaining efficient production speeds.
Typical Applications
The SQ60 is particularly suited for custom batch printing of small products, including:
- Badges
- Keychains
- Promotional products
- Toys and figurines
- Nameplates
- Small signage components
- Custom branded merchandise
Its AI vision conveyor system makes it possible to print multiple small objects in a single workflow, significantly reducing labour requirements and production time.
About Keundo
Keundo Equipment
KEUNDO delivers advanced large format printing solutions built for modern print and signage businesses. From UV flatbed and hybrid printers to high-performance production equipment, the brand combines industrial reliability, precision engineering and outstanding print quality to help businesses scale production and expand their creative capabilities.
Large Format Printing
Industrial Print Solutions
High-Speed Production
Technical Specifications
| Model | SQ60 |
|---|---|
| Printhead | Ricoh G6 × 6 |
| Printing Technology | AI Vision Automatic Scanning Printing |
| Supported Materials | Glass, Acrylic, Ceramic, Metal Plates, Wood, Plastic and more |
| Printing Width | 600 mm |
| Printing Thickness | 1 – 100 mm |
| Ink Type | UV Ink |
| Ink Colours | CMYK / White / Varnish |
| Printing Resolution | 600 dpi / 900 dpi / 1200 dpi |
| Interface | Gigabit Ethernet Port |
| Printing Speed | Production Mode: 3.5㎡/h |
| Operating System | Windows 10 Professional 64-bit |
| Power Supply | AC 220V, 50–60Hz |
| Power Consumption | Maximum 5KW |
| Working Environment | Temperature: 20–28°C / Humidity: 40–60% (no condensation) |
| Machine Dimensions | 2665mm × 2140mm × 1655mm |
| Machine Weight | 1300kg |
