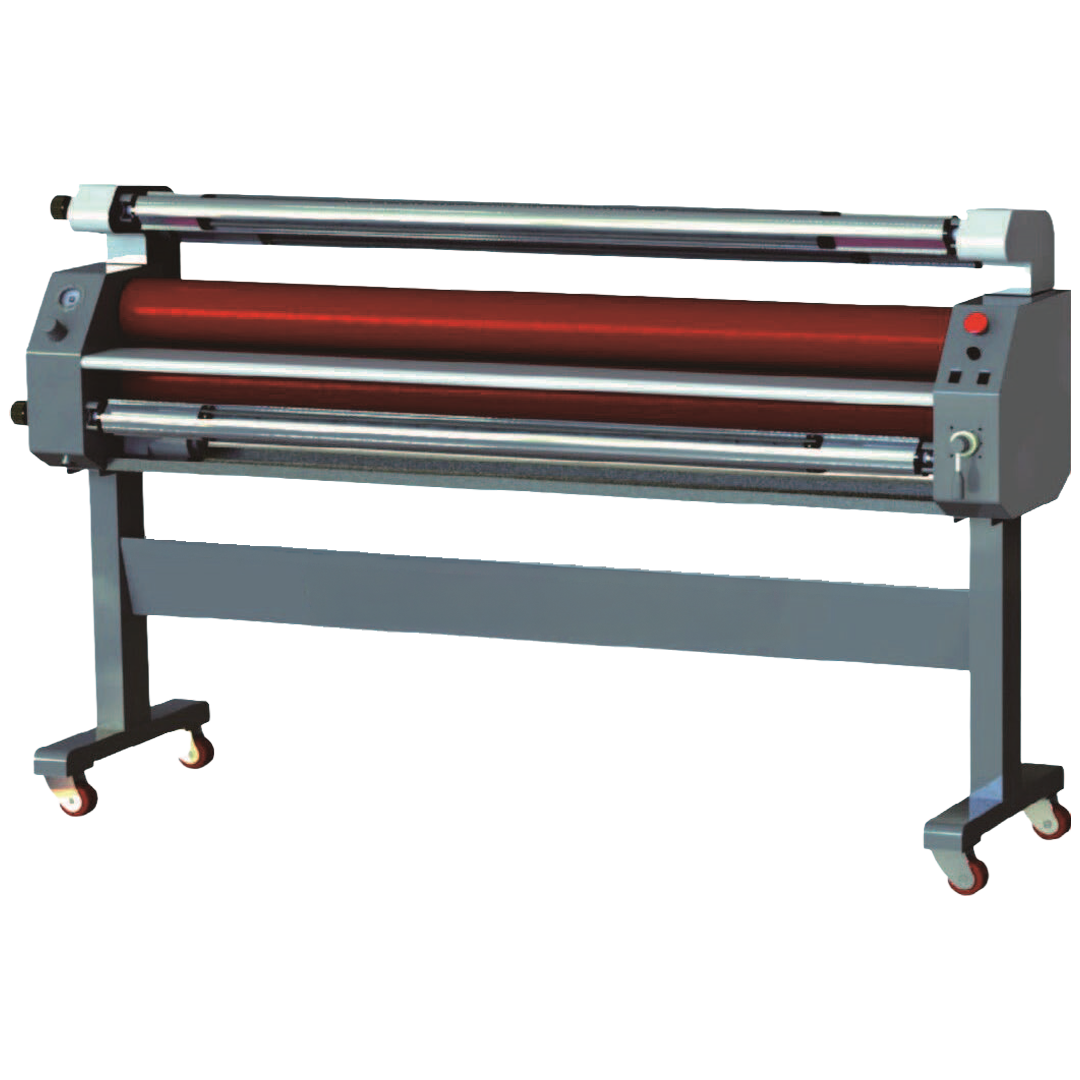

Fulei Union ECO 170 Roll-to-Roll Laminator
- Maximum working width of 1,650 mm for wide-format lamination.
- Variable working speed up to 8 m/min with forward and reverse control.
- Pneumatic roller lift system with a maximum nip opening of 35 mm.
- Automatic and foot pedal operation with emergency stop and photocell safety features.
The Fulei ECO 170C Roll-to-Roll Laminator provides a wide-format finishing solution for businesses laminating printed graphics.
With a maximum working width of 1,650 mm and variable speeds from 0 to 8 m/min, the ECO 170C allows operators to adjust production speed to suit the job. Its pneumatic roller lift system provides a maximum nip opening of 35 mm, while natural rubber rollers measure 130 mm in diameter.
A membrane control panel, forward and reverse direction control, and a choice of automatic or foot pedal operation provide convenient control during lamination. An emergency stop and photocell are installed for safety. A pneumatic pump is required for operation.
Key Features
- Maximum working width of 1,650 mm
- Variable working speed from 0 to 8 m/min
- Maximum nip opening of 35 mm
- Pneumatically driven roller up and down system
- 130 mm diameter rollers
- Natural rubber top and bottom rollers
- Drop-in interchangeable 3-inch aluminium shaft
- Membrane control panel
- Forward and reverse direction control
- Automatic and foot pedal switch modes
- Emergency stop and photocell safety features
- Removable pressure plate
- Heavy-duty castors with brakes
- Pneumatic pump required
Designed for Wide-Format Finishing
The ECO 170C combines adjustable speed with pneumatic roller positioning for everyday roll-to-roll lamination. Its interchangeable shaft and removable pressure plate assist with setup, while the foot pedal option gives operators additional control when feeding material.
Specifications are subject to change without prior notice.
| Model | ECO 170C |
|---|---|
| Machine Type | Roll-to-roll laminator |
| Maximum Working Width | 1,650 mm |
| Variable Working Speed | 0–8 m/min |
| Maximum Nip Opening | 35 mm |
| Roller Diameter | 130 mm |
| Top Roller Material | Natural rubber |
| Bottom Roller Material | Natural rubber |
| Drive Motor | DC 110 V / 230 V; 120 W |
| Power Consumption | 90 W |
| Power Requirements | AC 110 V, 50–60 Hz; AC 230 V, 50–60 Hz |
| Roller Lift System | Pneumatic; pneumatic pump required |
| Machine Dimensions | 1,995 × 430 × 1,250 mm |
| Shipping Dimensions | 2,095 × 530 × 650 mm |
| Net Weight | 200 kg |
| Gross Weight | 240 kg |
