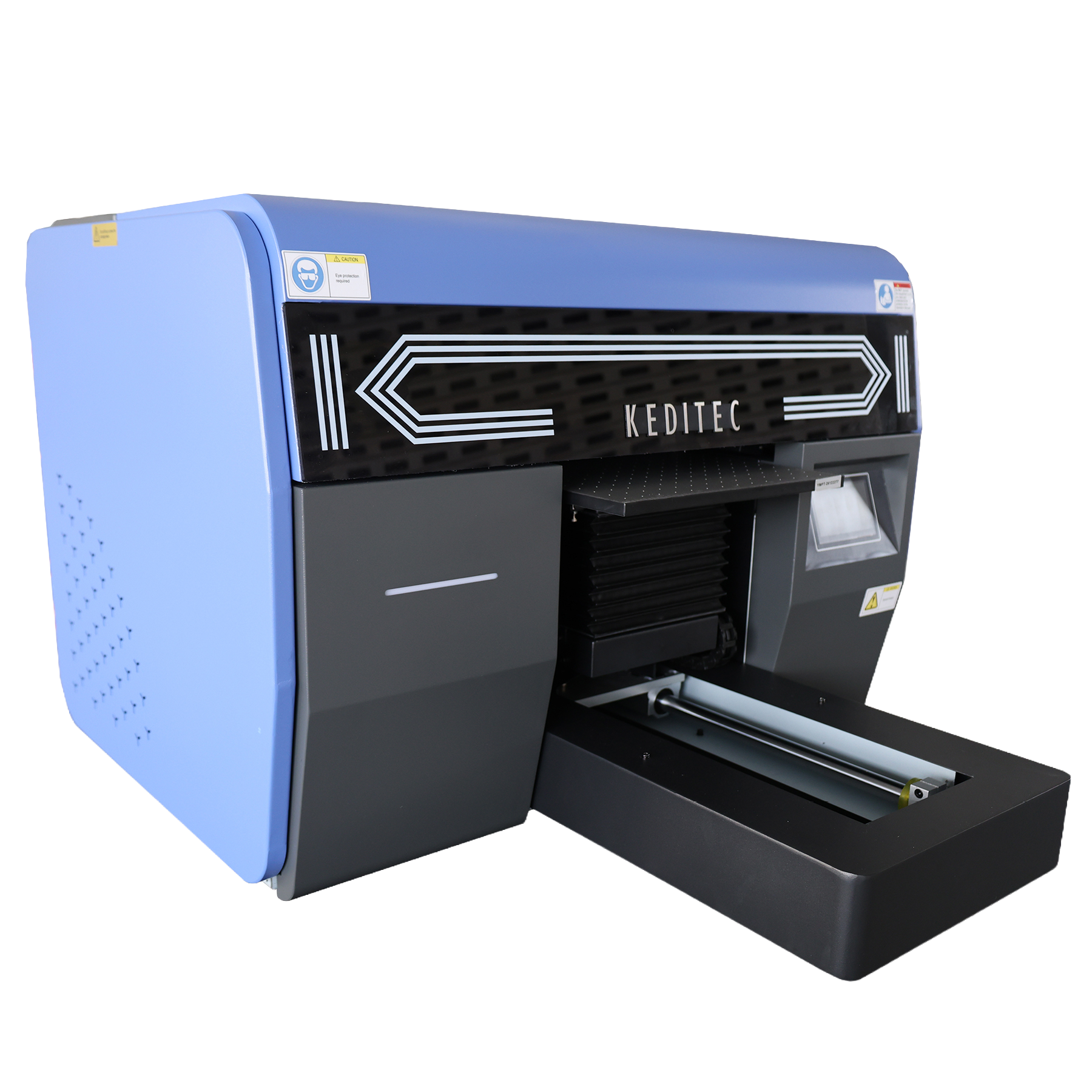

Keditec K-301UV UV Flatbed Printer
- 297 × 420 mm print area for small-format UV printing
- Single Epson i3200(8)-U1HD printhead with 3,200 nozzles
- Print height up to 80 mm with a lifting vacuum table
- White and varnish ink configurations available with optional standard and cylinder fixtures
Finance Available
Get the equipment you need now and pay monthly.
Available for qualifying businesses. Speak to our team to arrange a quote.
The Keditec K-301UV UV Flatbed Printer provides a small-format printing solution with a 297 × 420 mm print area. Its single Epson i3200(8)-U1HD printhead supports UV-curing inks and a maximum of eight ink colours.
With a print height range of 0–80 mm, the K-301UV accommodates items of varying thicknesses. A lifting vacuum table, precision belt drive system and operation screen support positioning and everyday printer control.
The printer offers a listed resolution of 960 × 1,200 dpi and speeds from 0.28 to 3 m²/h. Ink configurations include CMYK with white and varnish, while optional standard and cylinder fixtures provide additional setup choices.
Key Features
- 297 × 420 mm print area
- Single Epson i3200(8)-U1HD printhead
- 3,200 nozzles arranged in eight rows
- Supports a maximum of eight ink colours
- UV-curing ink technology
- 960 × 1,200 dpi print resolution
- Listed print speed range of 0.28–3 m²/h
- Print height range of 0–80 mm
- CMYK, white and varnish configuration available
- Intelligent ink supply system
- Lifting vacuum table
- Operation screen
- Precision belt drive system
- Optional standard fixture
- Optional cylinder fixture
- Network cable connectivity
- Supports TIFF, JPEG, EPS, PDF and PNG files
Designed for Small-Format Customisation
The K-301UV combines an A3-sized print area with adjustable print height for businesses producing customised items. White and varnish ink options and optional fixtures provide flexibility for different designs and product shapes.
Specifications are subject to change without prior notice.
| Model | Keditec K-301UV |
|---|---|
| Printer Type | UV flatbed printer |
| Printhead | 1 × Epson i3200(8)-U1HD |
| Number of Nozzles | 3,200 |
| Nozzle Rows | 8 |
| Maximum Supported Ink Colours | 8 |
| Ink Type | UV-curing ink |
| Ink Colour Configurations Listed | CMYK + W + V; CMYK + Lc + Lm + W; CMYK + Lc + Lm + LLk; CMYK |
| Print Area | 297 × 420 mm |
| Print Height | 0–80 mm |
| Print Resolution | 960 × 1,200 dpi |
| Print Speed | 0.28–3 m²/h |
| Table | Lifting vacuum table |
| Drive System | Precision belt drive |
| Ink Supply | Intelligent ink supply system |
| Optional Fixtures | Standard fixture and cylinder fixture |
| Connection | Network cable |
| Supported File Formats | TIFF, JPEG, EPS, PDF and PNG |
| Power Supply | AC 220/110 V, 50–60 Hz |
| Working Environment | 0–28°C; 35–65% relative humidity |
| Ink Storage Environment | 20–28°C; 35–65% relative humidity; protected from light |
| Machine Dimensions | 900 × 1,010 × 600 mm (L × W × H) |
| Net Weight | 78 kg |
| Gross Weight | 148.5 kg |
