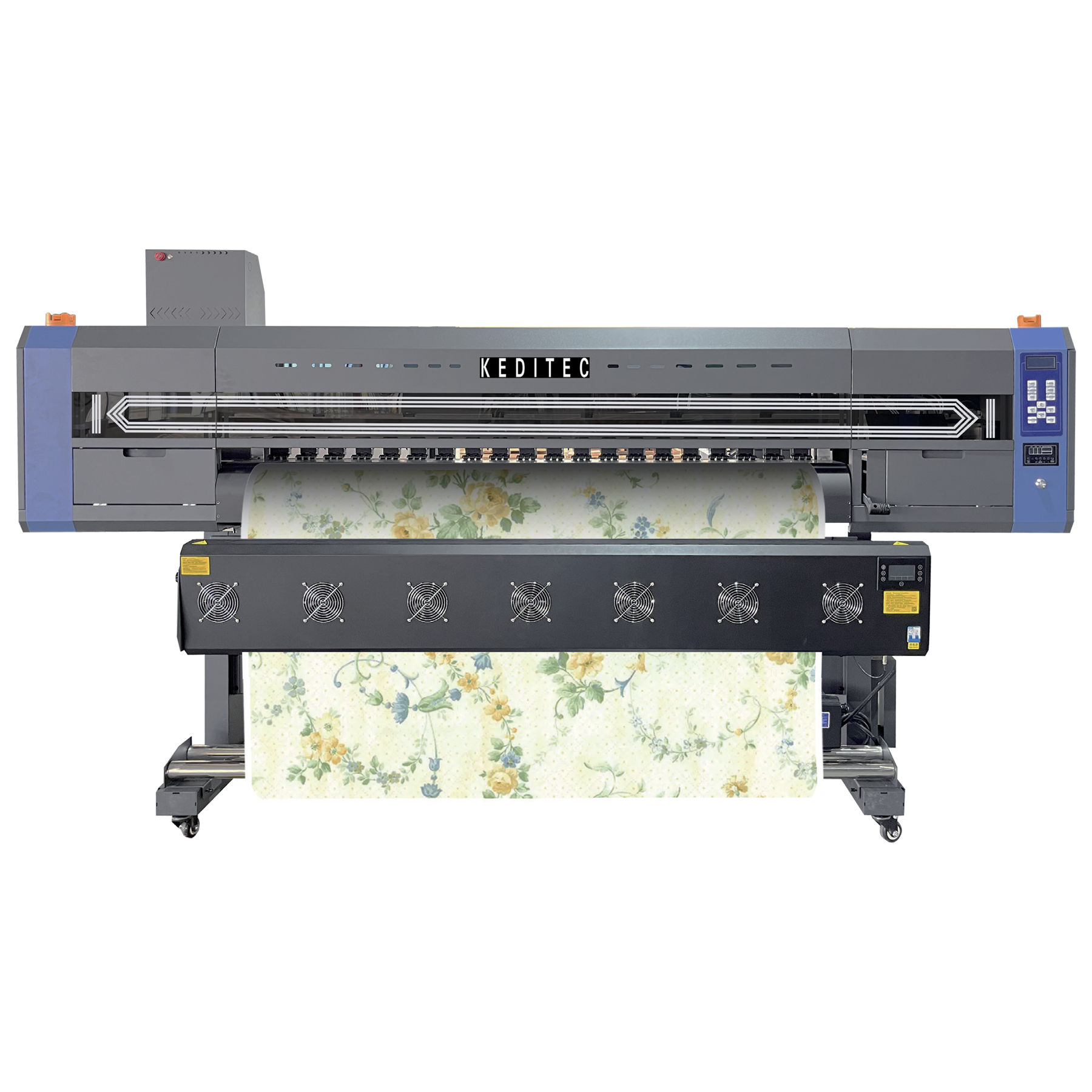

Keditec K2-16TX Dye Sublimation Printer
- 1,600 mm print width for wide-format sublimation production
- Dual Epson i3200-A1 printheads with resolution up to 3,600 dpi
- Print speeds up to 40 m²/h in 4-pass mode
- CMYK continuous ink supply with integrated heating, infrared drying and a fan system
Finance Available
Get the equipment you need now and pay monthly.
Available for qualifying businesses. Speak to our team to arrange a quote.
| Printer Technology | Dye Sublimation |
|---|
The Keditec K2-16TX Sublimation Printer provides a 1.6 m printing platform for businesses producing sublimation graphics. Equipped with dual Epson i3200-A1 printheads, it uses CMYK sublimation inks and supports a maximum print resolution of 3,600 dpi.
The K2-16TX delivers speeds of up to 40 m²/h at 4-pass, 720 × 1,200 dpi, with 6-pass printing available at 27 m²/h and 720 × 1,800 dpi. Its continuous ink supply system uses 220 ml ink cartridges with 1.5 L ink tanks.
A THK high-precision quiet guide rail, servo motor and 3-in-1 pinch rollers support controlled media feeding. An integrated post heater, infrared dryer and fan system assist drying, while automated moisturising and cleaning support printhead maintenance.
Key Features
- Print width of up to 1,600 mm
- Dual Epson i3200-A1 printheads
- Piezoelectric inkjet printing technology
- Maximum print resolution of 3,600 dpi
- Print speeds up to 40 m²/h in 4-pass mode
- 6-pass printing at 27 m²/h
- CMYK sublimation ink configuration
- Continuous ink supply system with 220 ml cartridges and 1.5 L ink tanks
- THK high-precision quiet guide rail
- High-stability tensioning pulley system
- 3-in-1 pinch rollers for media feeding
- High-quality servo motor
- Automated moisturising and cleaning system
- Integrated post heater, infrared dryer and fan system
- Intelligent rolling system
- Accepts media up to 1,620 mm wide and 1 mm thick
- Maximum media weight of 60 kg
- LAN connectivity
- RIP software included
Designed for Sublimation Printing Workflows
The K2-16TX combines dual-head printing, bulk ink supply and integrated drying in a 1.6 m format. Its selectable print modes and automated maintenance features support businesses working with compatible sublimation media.
Specifications are subject to change without prior notice.
| Model | Keditec K2-16TX |
|---|---|
| Printer Type | Sublimation printer |
| Printing Technology | Piezoelectric inkjet |
| Printheads | 2 × Epson i3200-A1 |
| Maximum Print Width | 1,600 mm |
| Maximum Print Resolution | 3,600 dpi |
| Print Speed – 4 Pass | 40 m²/h at 720 × 1,200 dpi |
| Print Speed – 6 Pass | 27 m²/h at 720 × 1,800 dpi |
| Ink Type | Sublimation ink |
| Ink Colours | CMYK |
| Ink Supply System | 4 × 4 continuous ink supply system; 220 ml ink cartridges with 1.5 L ink tanks |
| Maximum Media Width | 1,620 mm |
| Maximum Media Thickness | 1 mm |
| Maximum Media Weight | 60 kg |
| Media Heating and Drying | Integrated post heater, infrared dryer and fan system |
| Printhead Maintenance | Automated moisturising and cleaning system |
| Interface | LAN |
| Power Supply | AC 220 V ±10%, 50/60 Hz |
| Operating Environment | 15–32°C; 35–80% relative humidity, non-condensing |
| Power-Off Environment | 5–40°C; 20–80% relative humidity, non-condensing |
| Machine Dimensions with Stand | 2,750 × 800 × 1,500 mm (W × D × H) |
| Machine Weight with Stand | 300 kg |
| Package Dimensions | 2,800 × 760 × 760 mm (W × D × H) |
| Package Weight | 550 kg |
| Supplied Accessories | Printheads, USB cable, media clamp, manual, drain bottle, ink cartridges and RIP software |
