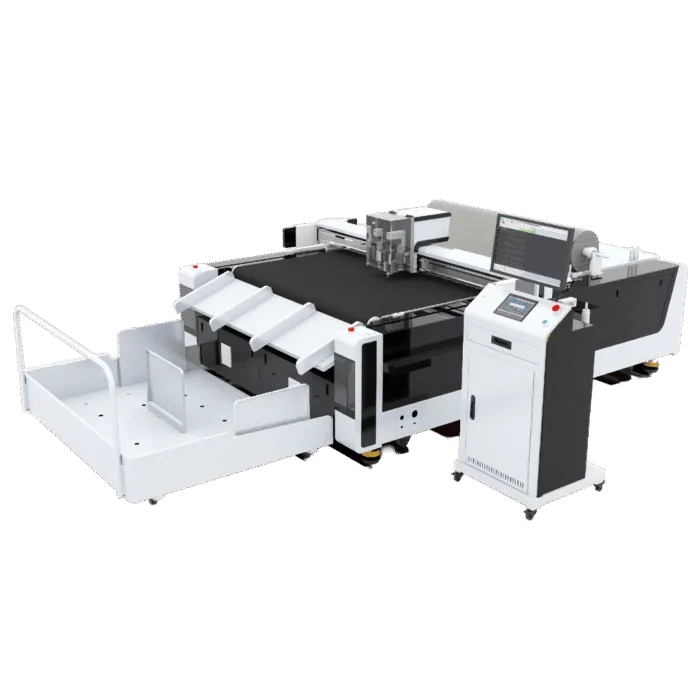

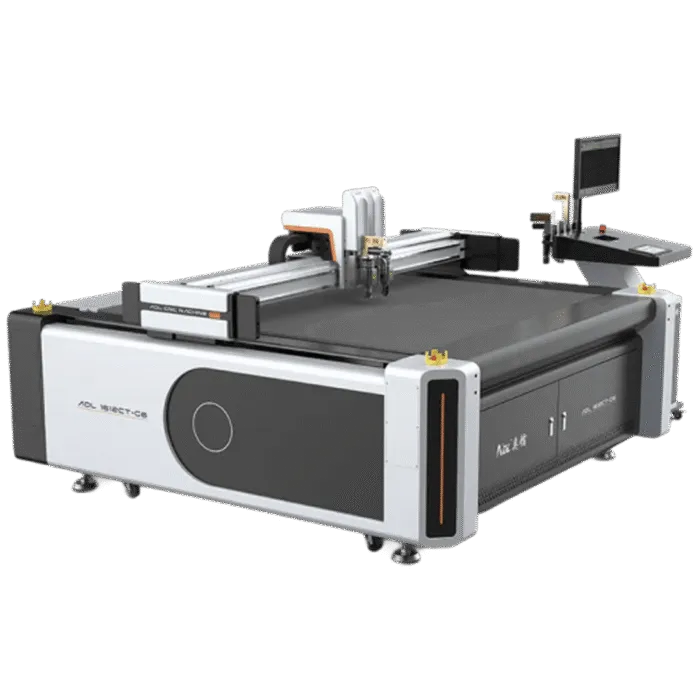

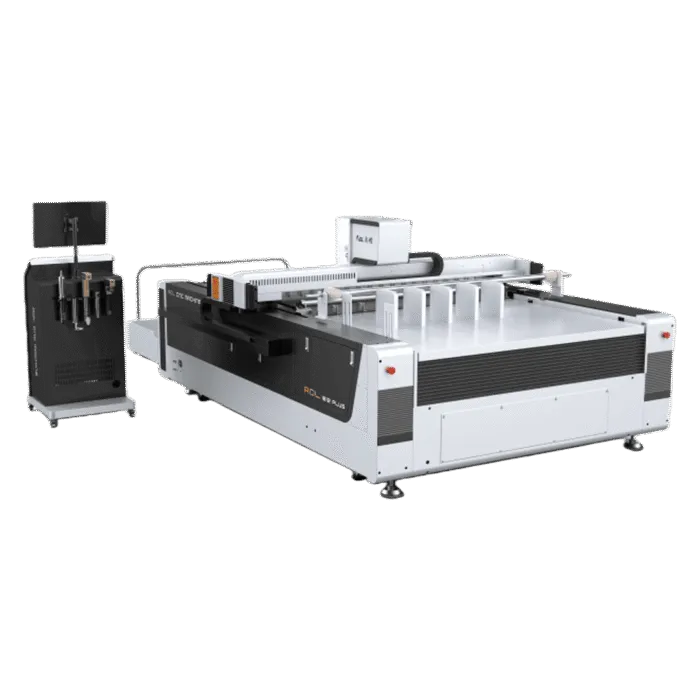

AOL 1612PLUS Cutting Plotter
- 1,600 × 1,200 mm working area for a range of cutting applications.
- Cutting speeds up to 1,200 mm/s, depending on material density.
- Cuts materials up to 20 mm thick, depending on the material.
- Eight vacuum partitions, infrared safety sensors and optional multifunctional tools.
Finance Available
Get the equipment you need now and pay monthly.
Available for qualifying businesses. Speak to our team to arrange a quote.
The AOL 1612 Plus Cutting Plotter provides a versatile digital cutting solution for businesses working with signage, packaging and printed materials.
With a 1,600 × 1,200 mm working area, cutting speeds of up to 1,200 mm/s and support for materials up to 20 mm thick, the 1612 Plus accommodates a range of cutting requirements. Cutting speed and maximum thickness depend on the material and its density.
A selection of optional tools allows the machine to be configured for cutting, creasing and marking. A 5.5 kW vacuum pump, tracking adsorption and eight vacuum partitions help hold materials in position, while repeat accuracy of ≤0.1 mm supports consistent results.
Key Features
- Working area of 1,600 × 1,200 mm
- Maximum cutting length of 1,600 mm
- Maximum cutting width of 1,200 mm
- Cutting speeds of up to 1,200 mm/s, depending on material density
- Travel speeds of up to 1,800 mm/s
- Cutting thickness of up to 20 mm, depending on the material
- Repeat accuracy of ≤0.1 mm
- Supports multiple cutting knives
- Optional oscillating knife and drag knife tools
- Optional V-cut tool, crease wheel and cut-through knife
- Optional marking pen and CCD camera
- Suitable for PVC board, PP board, white card, cardboard, paper, PVC, film and stickers
- 5.5 kW vacuum pump
- Tracking adsorption material holding system
- Eight vacuum partitions
- Infrared safety sensors
- Imported digital servo motor, linear guide and belt transmission
- Supports PDF, PLT, DXF and HP-GL file formats
- HP-GL-compatible instruction system
Designed for Flexible Cutting and Finishing
The 1612 Plus combines a practical working area with a choice of tools for different materials and finishing requirements. From cutting printed graphics to creasing packaging materials, the machine can be configured around the tasks your business needs to complete.
Specifications are subject to change without prior notice.
| Model | 1612 Plus |
|---|---|
| Machine Type | Cutting plotter |
| Working Area | 1,600 × 1,200 mm |
| Maximum Cutting Width | 1,200 mm |
| Maximum Cutting Length | 1,600 mm |
| Cutting Speed | 0–1,200 mm/s, depending on material density |
| Travel Speed | 0–1,800 mm/s |
| Cutting Thickness | Up to 20 mm, depending on the material and its density |
| Repeat Accuracy | ≤0.1 mm |
| Tool Configuration | Multiple cutting knives |
| Optional Tools | Oscillating knife, drag knife, crease wheel, marking pen, V-cut tool, cut-through knife and CCD camera |
| Supported Materials | PVC board, PP board, white card, cardboard, paper, PVC, film and stickers |
| Material Holding | Tracking adsorption |
| Vacuum Partitions | 8 |
| Vacuum Pump Power | 5.5 kW |
| Safety System | Infrared sensors |
| Transmission System | Imported digital servo motor, linear guide and belt |
| File Formats | PDF / PLT / DXF / HP-GL |
| Instruction System | HP-GL-compatible format |
| Voltage | 220 / 380 V ±10% |
| Machine Dimensions | 3,100 × 2,284 × 1,250 mm |
| Machine Weight | 900 kg |
