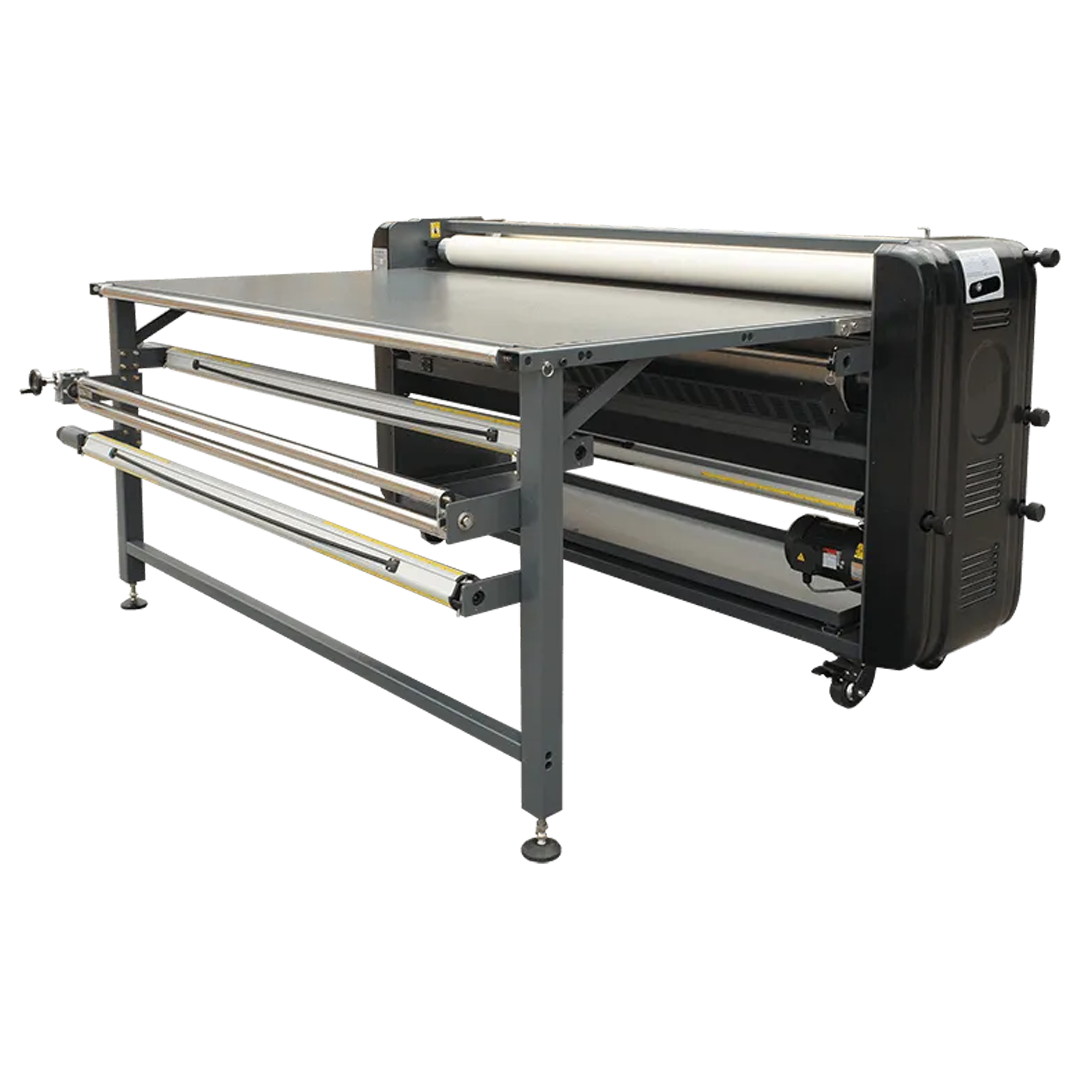

Fulei Union HT 1720P T2B Roll-to-Roll Heat Transfer Machine
- Roll-to-roll heat transfer machine with an oil-heated drum.
- Working temperature of 190–230°C with constant temperature control.
- Variable working speed up to 2.3 m/min and a 200 mm drum diameter.
- Easy feeding table, accessible felt entry and release, and drawer-type finished-piece collection.
The Fulei HT 1720P T2B Roll-to-Roll Heat Transfer Machine provides a controlled heating solution for heat transfer production.
With an oil-heated drum measuring 200 mm in diameter, the HT 1720P T2B operates at temperatures from 190 to 230°C. Variable working speeds from 0 to 2.3 m/min allow operators to adjust the feed rate to suit production requirements.
The machine features constant temperature control and three infrared heating elements. An easy feeding table supports material handling, while accessible felt entry and release points assist with setup. A drawer-type collection system provides a convenient place for finished pieces.
Key Features
- Roll-to-roll heat transfer operation
- Oil heating system
- Constant temperature control
- Three infrared heating elements
- 200 mm drum diameter
- Variable working speed from 0 to 2.3 m/min
- Working temperature range of 190 to 230°C
- Alarm temperature of 250°C
- Easy feeding table
- Easy-access design for felt entry and release
- Drawer-type finished-piece collection
- 7 kW power consumption
- 230 V single-phase power requirement
Designed for Heat Transfer Production
The HT 1720P T2B combines controlled heat and adjustable speed with practical material handling features. Its feeding table, accessible felt system and finished-piece collection drawer support the movement of work through the transfer process.
Specifications are subject to change without prior notice.
| Model | HT 1720P T2B |
|---|---|
| Machine Type | Roll-to-roll heat transfer machine |
| Heating Type | Oil |
| Heating Elements | 3 infrared heating elements |
| Drum Diameter | 200 mm |
| Variable Working Speed | 0–2.3 m/min |
| Working Temperature | 190–230°C |
| Alarm Temperature | 250°C |
| Power Consumption | 7 kW |
| Power Requirements | 230 V, 50/60 Hz, single phase |
| Machine Dimensions | 2,370 × 870 × 1,300 mm |
| Shipping Dimensions | 2,480 × 940 × 1,500 mm |
| Net Weight | 430 kg |
| Gross Weight | 520 kg |
