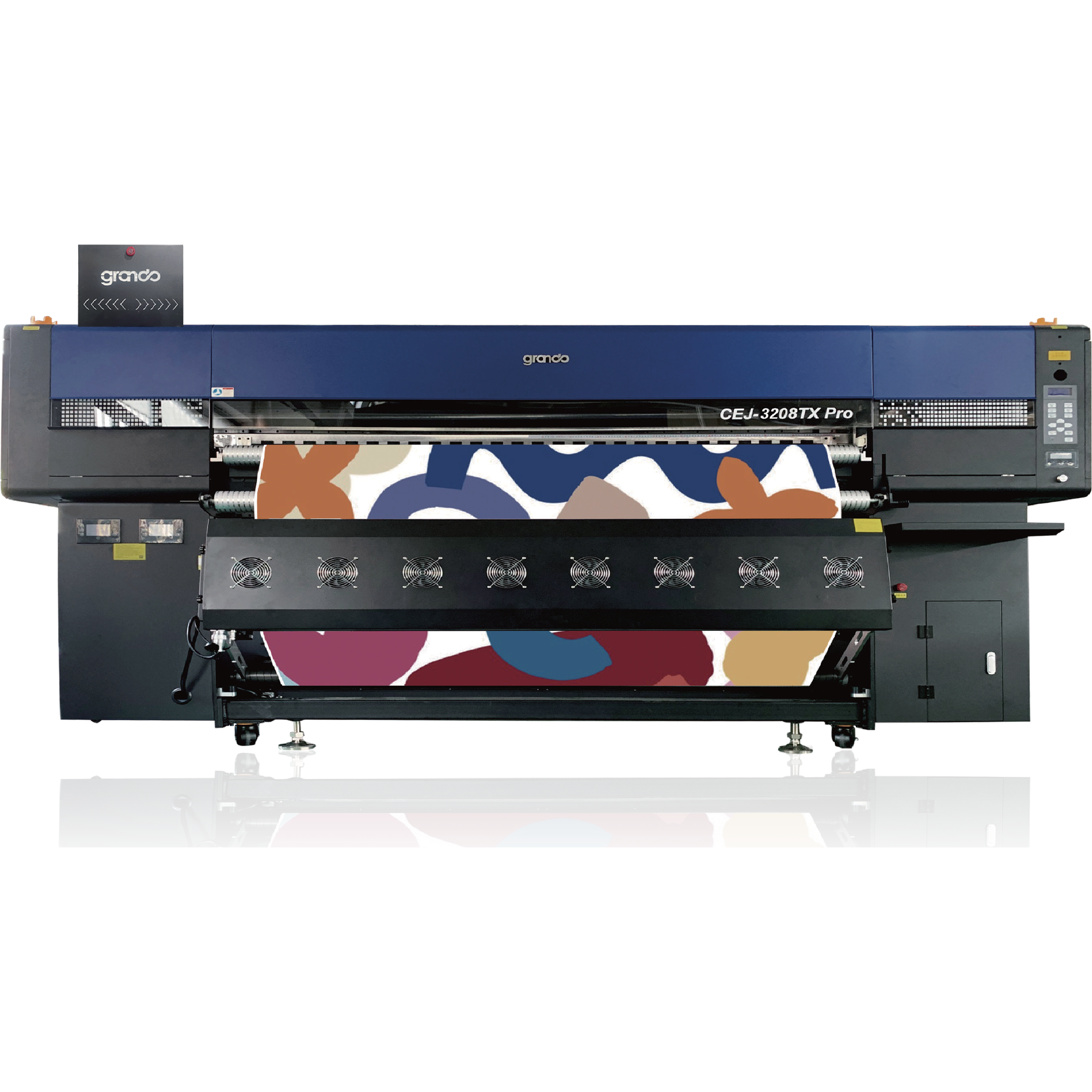

Keditec CEJ-3208TX Pro Dye Sublimation Printer
- Eight i3200 printheads for wide-format dye sublimation production
- Supports heat transfer paper up to 3,200 mm wide
- Automatic ink replenishment with 5 L ink bottles and 220 ml secondary tanks
- Automatic media loading and take-up with an external air and heat dryer
Finance Available
Get the equipment you need now and pay monthly.
Available for qualifying businesses. Speak to our team to arrange a quote.
| Printer Technology | Dye Sublimation |
|---|
The Keditec CEJ-3208TX Pro Dye Sublimation Printer provides a wide-format production solution for businesses printing onto heat transfer paper. Equipped with eight i3200 printheads, it accepts media up to 3,200 mm wide and uses piezoelectric inkjet technology with a listed droplet size of 3.5 pl.
The CEJ-3208TX Pro offers 2-pass printing at 254 m²/h and 3-pass printing at 170 m²/h. A siphon ink supply system with automatic replenishment connects 5 L ink bottles to 220 ml secondary ink tanks.
Media handling combines high-precision servo feeding, a vacuum airflow platform and an automatic air-expansion shaft system. An external dryer integrates air and heat, while automatic cleaning and moisturising support printhead maintenance.
Key Features
- Eight i3200 printheads
- Accepts heat transfer paper up to 3,200 mm wide
- Piezoelectric inkjet printing technology
- Listed droplet size of 3.5 pl
- 2-pass printing at 254 m²/h
- 3-pass printing at 170 m²/h
- 220 ml secondary ink tanks with 5 L ink bottles
- Siphon ink path with automatic ink replenishment
- Stable THK rail structure
- High-precision servo feeding
- Quick nozzle inspection window
- Uniform-pressure media feed system
- AC servo drive
- Vacuum airflow media platform
- Heavy-duty swing rod system
- Fast-loading inflatable shaft
- Automatic media loading and take-up system
- External automatic air and heat dryer
- Automatic cleaning and moisturising unit
- Low-ink alarm system
- USB 3.0 interface
- Ultraprint RIP software supplied as standard
Designed for Wide-Format Transfer Printing
The CEJ-3208TX Pro combines eight-head printing with bulk ink supply and automated media handling for wide-format sublimation transfer production. Its external drying system and integrated maintenance features support an organised production workflow.
Specifications are subject to change without prior notice.
| Model | Keditec CEJ-3208TX Pro |
|---|---|
| Printer Type | Dye sublimation printer |
| Printing Technology | Piezoelectric inkjet |
| Printheads | 8 × i3200 |
| Droplet Size | 3.5 pl |
| Maximum Media Width | 3,200 mm |
| Printing Media | Heat transfer paper |
| Print Speed – 2 Pass | 254 m²/h at 360 × 2,400 dpi |
| Print Speed – 3 Pass | 170 m²/h at 360 × 3,600 dpi |
| Ink Tank Capacity | 220 ml secondary ink tanks with 5 L ink bottles |
| Ink Colour Options Listed | CMYK; CMYK + Lc + Lm + Lk + LLk; FM, FY, red, green and orange |
| Ink Supply System | Siphon ink path with automatic replenishment |
| Media Loading and Take-Up | Automatic air-expansion shaft system |
| Drying System | External automatic dryer with integrated air and heat |
| Printhead Maintenance | Integrated automatic cleaning and moisturising unit |
| Ink Monitoring | Low-ink alarm system |
| Interface | USB 3.0 |
| Supported File Formats | JPG, TIFF and PDF |
| Standard RIP Software | Ultraprint |
| Optional RIP Software Listed | Maintop 6.0, Photoprint, Onyx, NeoStampa and PrintFactory |
| Printing System Power | 2,000 W |
| Maximum Drying System Power | 12.6 kW |
| Power Supply Listed | AC 220 V ±5%, 16 A, 50 Hz ±1 |
| Operating Environment | 15–32°C; 35–80% relative humidity, non-condensing |
| Power-Off Environment | 5–40°C; 20–80% relative humidity, non-condensing |
| Machine Dimensions with Stand | 4,750 × 1,590 × 1,970 mm (W × D × H) |
| Supplied Equipment | External air and heat dryer, low-ink alarm system, double air-shaft media loading and take-up system, and automatic moisturising and cleaning system |
