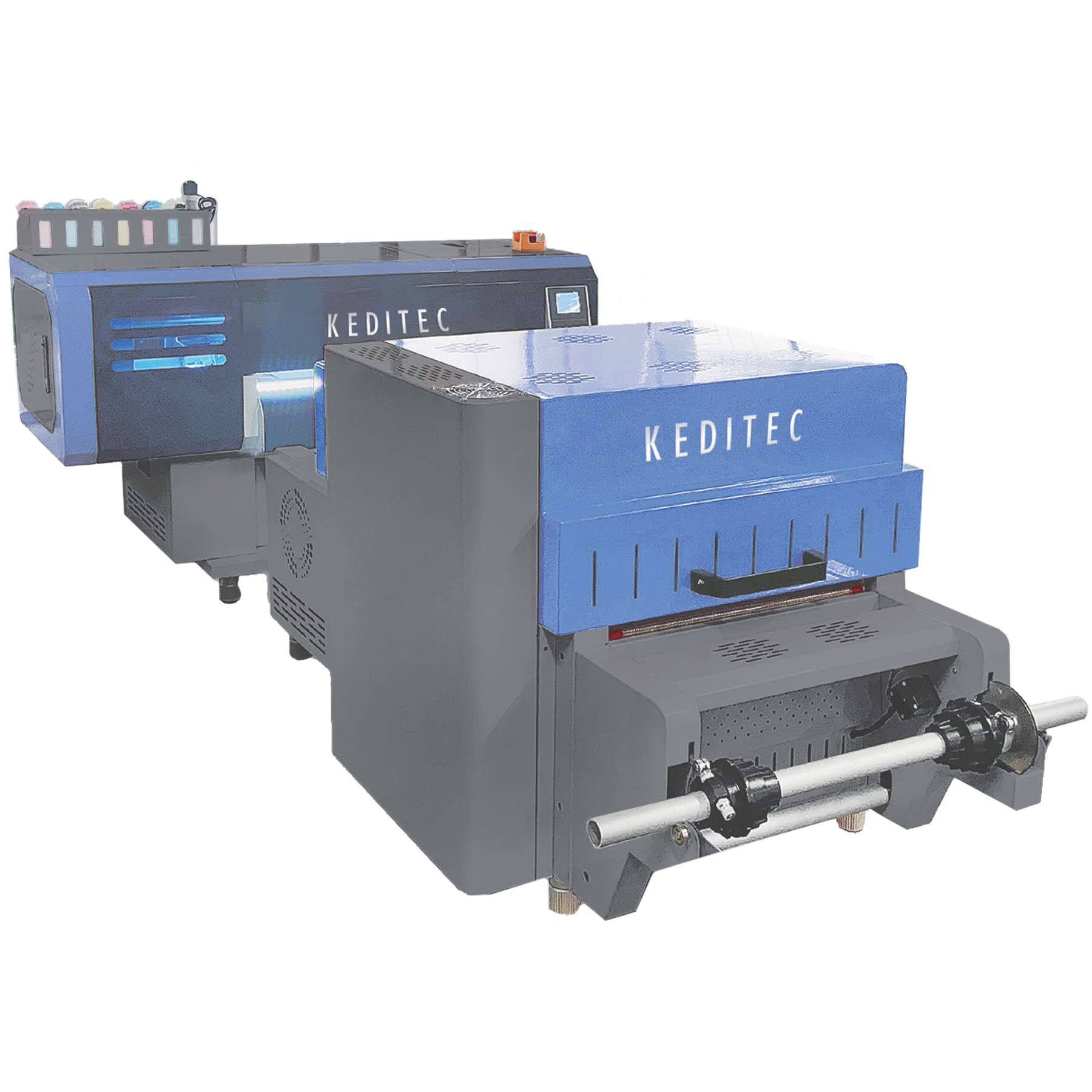

Keditec K2-DTF30 DTF Printer
- Print width up to 300 mm for direct-to-film transfer production
- i1600 and F1080 printhead configurations with colour and white ink options
- 1,440 dpi printing resolution with ICC or density curve colour management
- Automatic ink supply and white ink circulation with a powder and colour fixing system
Finance Available
Get the equipment you need now and pay monthly.
Available for qualifying businesses. Speak to our team to arrange a quote.
| Printer Technology | DTF |
|---|
The Keditec K2-DTF-30 DTF Printer provides a compact direct-to-film printing solution for businesses producing garment and textile transfers. With a print width of up to 300 mm, it prints onto PET film using transfer pigment inks.
The K2-DTF-30 offers 1,440 dpi printing resolution with ICC or density curve colour management. The brochure lists an optional i1600 configuration with CMYK and white, and an F1080 configuration with CMYK, light cyan, light magenta and white. Automatic ink supply, constant-pressure circulation and white ink circulation support ink delivery.
A THK quiet guide rail and tension bar media feeding system support controlled movement through the printer. The associated powder and colour fixing machine provides adjustable powder control, upper and lower heating lamps, cold-air cooling and automatic take-up.
Key Features
- Print width of up to 300 mm
- Accepts PET film up to 330 mm wide
- Micro piezo inkjet printing technology
- i1600 and F1080 printhead configurations listed
- Optional i1600 configuration with CMYK and white ink
- F1080 configuration with CMYK, light cyan, light magenta and white ink
- 1,440 dpi printing resolution
- ICC or density curve colour management
- Transfer pigment inks
- Automatic ink supply with constant-pressure circulation
- White ink circulation system
- THK quiet guide rail
- Tension bar media feeding system
- Upgraded damper heating
- Automatic moisturising function
- Adjustable powder direction and volume control
- Upper and lower rows of heating lamps
- Cold-air fan function
- Automatic induction winding
- RJ-45/LAN connectivity
- MainTop and PhotoPrint RIP software listed
Designed for Garment Transfer Production
The K2-DTF-30 supports the production of printed film transfers for garment decoration and personalised products. The brochure lists applications including cotton, nylon, synthetic fibres, leather, swimwear, wetsuits, PVC and EVA, allowing businesses to explore a range of compatible transfer applications.
Specifications are subject to change without prior notice.
| Model | Keditec K2-DTF-30 |
|---|---|
| Printer Type | Direct-to-film printer |
| Printing Technology | Micro piezo inkjet |
| Printhead Configurations Listed | i1600 and F1080 |
| Maximum Print Width | 300 mm |
| Maximum Printer Media Width | 330 mm |
| Printing Media | PET film |
| Printing Resolution | 1,440 dpi |
| Ink Type | Transfer pigment ink |
| Ink Colour Configurations | Optional i1600: CMYK + white; F1080: CMYK + light cyan + light magenta + white |
| Ink Supply System | Automatic ink supply with constant-pressure circulation |
| White Ink Management | White ink circulation |
| Colour Management | ICC or density curve |
| Media Heating System | Powder and colour fixing machine |
| Interface | RJ-45/LAN |
| RIP Software Listed | MainTop and PhotoPrint |
| Printer Power Supply | 220 V, 5 A |
| Operating Temperature | 15–32°C |
| Operating Humidity Listed | 5–40% |
| Printer Dimensions with Stand | 1,194 × 622 × 664 mm (L × W × H) |
| Printer Weight | 132 kg |
| Printer Packing Dimensions | 1,250 × 720 × 830 mm (L × W × H) |
| Printer Packing Weight | 152 kg |
| Folding Table Dimensions | 2,000 × 608 × 600 mm (L × W × H) |
| Folding Table Packing Dimensions | 1,085 × 700 × 600 mm (L × W × H) |
| Powder Shaker Media Width | 0–300 mm |
| Transfer Applications Listed | Nylon, synthetic fibres, cotton, leather, swimwear, wetsuits, PVC and EVA |
| Powder Control | Powder shaking, powder direction and powder volume control |
| Heating and Drying Functions | Upper and lower double rows of heating lamps, drying and cold-air fan |
| Rewind Function | Automatic induction winding |
| Powder Shaker Rated Voltage | 220 V |
| Powder Shaker Rated Current | 20 A |
| Powder Shaker Rated Power | 2 kW |
| Powder Shaker Power Consumption | 1–1.5 kW |
| Powder Shaker Dimensions | 1,345 × 675 × 680 mm (L × W × H) |
| Powder Shaker Packing Dimensions | 1,440 × 760 × 850 mm (L × W × H) |
| Powder Shaker Weight Listed | 161 kg |
