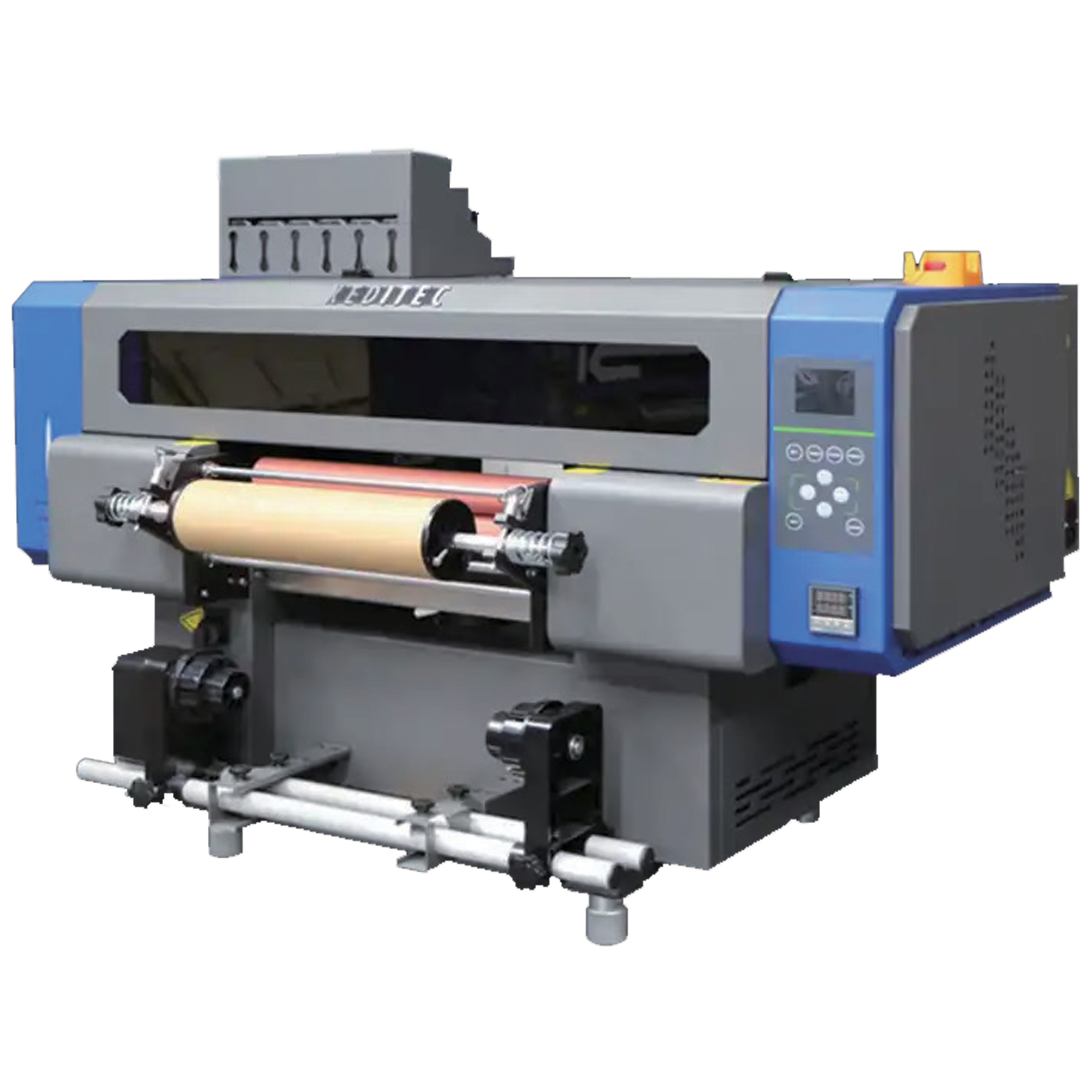

Keditec K32UV Roll-to-Roll Printer
- Supports media up to 300 mm wide for compact roll-to-roll UV printing
- Two F1080 printheads with resolution up to 2,400 dpi
- CMYK, white and varnish inks with automatic white ink stirring
- Dual UV LED curing lights and Gigabit Ethernet connectivity
Finance Available
Get the equipment you need now and pay monthly.
Available for qualifying businesses. Speak to our team to arrange a quote.
| Printer Technology | UV |
|---|
The Keditec K32UV Roll-to-Roll Printer provides a compact UV printing solution for decorative and branding graphics. Equipped with two F1080 printheads, it accepts media up to 300 mm wide and 1.5 mm thick.
The K32UV supports CMYK, white and varnish inks, with a colour ink siphon system and automatic white ink stirring. It offers a maximum print resolution of 2,400 dpi and a listed 8-pass production speed of 1.5 m²/h.
Dual UV LED lights cure the ink during printing. The brochure identifies plastic, glass, metal, wood, leather and ceramics as suggested surfaces for the finished graphics, including flat and curved applications.
Key Features
- Roll-to-roll UV printing format
- Two F1080 printheads
- Piezoelectric inkjet printing technology
- Accepts media up to 300 mm wide
- Maximum media thickness of 1.5 mm
- Maximum print resolution of 2,400 dpi
- 8-pass printing at 1.5 m²/h
- CMYK, white and varnish ink configuration
- Colour ink siphon system
- Automatic white ink stirring
- Dual UV LED curing lights
- Gigabit Ethernet connectivity
- Suggested finished-graphic applications include plastic, glass, metal, wood, leather and ceramics
Designed for Decorative and Branding Graphics
The K32UV combines colour, white and varnish printing in a compact roll-fed platform. Its UV LED curing system and range of suggested finished-graphic applications make it suitable for businesses expanding their product decoration and custom branding services.
Specifications are subject to change without prior notice.
| Model | Keditec K32UV |
|---|---|
| Printer Type | Roll-to-roll UV printer |
| Printing Technology | Piezoelectric inkjet |
| Printheads | 2 × F1080 |
| Maximum Media Width | 300 mm |
| Maximum Media Thickness | 1.5 mm |
| Maximum Print Resolution | 2,400 dpi |
| Print Speed – 8 Pass | 1.5 m²/h |
| Ink Colours | CMYK + white + varnish |
| Ink Supply System | Colour ink siphon system with automatic white ink stirring |
| Ink Curing Method | Dual UV LED lights |
| Interface | Gigabit Ethernet |
| Power Supply | AC 220 V ±10%, 50/60 Hz |
| Operating Environment | 15–32°C; 35–80% relative humidity, non-condensing |
| Power-Off Environment | 5–40°C; 20–80% relative humidity, non-condensing |
| Machine Dimensions with Stand | 1,160 × 920 × 880 mm (W × D × H) |
| Machine Weight with Stand | 200 kg |
| Suggested Finished-Graphic Application Surfaces | Plastic, glass, metal, wood, leather and ceramics |
