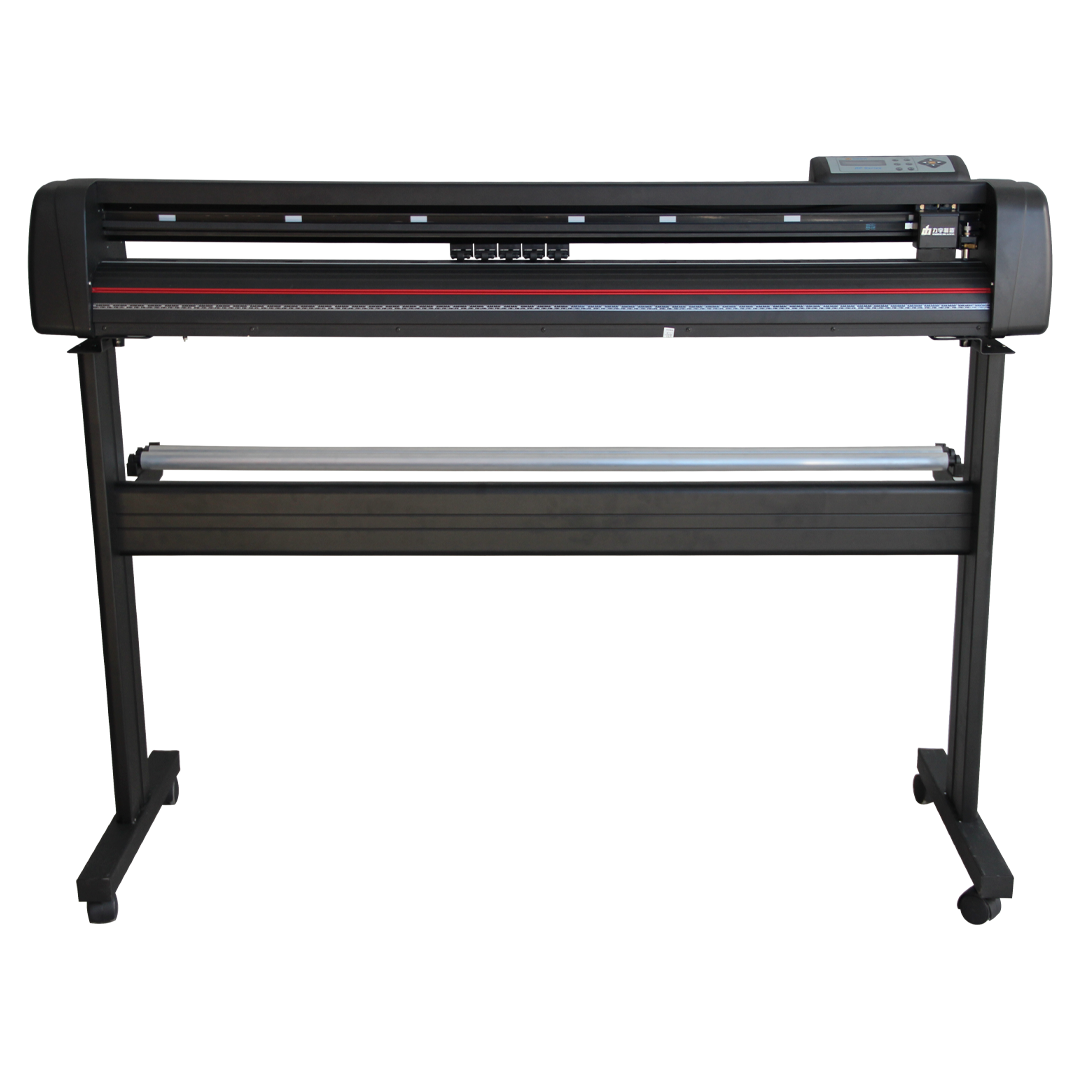

Liyu DF Series Vinyl Cutting Plotter
- Automatic contour cutting with direct cutting from a USB drive.
- Servo drive system with cutting speeds up to 1,000 mm/s.
- Digitally adjustable cutting force up to 500 g.
- 1 GB memory, LCD display and stand, with two model options.
The Liyu DF Series Vinyl Cutting Plotter provides an automatic contour-cutting solution for businesses producing vinyl graphics and finishing printed designs.
Available in DF 631-AF and DF 1261-AF models, the range combines an ARM processor with a servo drive system. Both models offer cutting speeds of up to 1,000 mm/s and a maximum cutting force of 500 g, with digital adjustment of speed and force.
The system can identify a USB drive and read contour-cutting files directly from it. Built-in 1 GB memory supports extended offline cutting, while the automatic contour-cutting system is designed to minimise interference from external light sources.
Key Features
- Available in DF 631-AF and DF 1261-AF models
- Automatic contour-cutting functionality as standard
- Direct reading and cutting of contour files from a USB drive
- ARM processor and servo drive system
- High-speed STM32 control system
- Maximum cutting speed of 1,000 mm/s
- Maximum cutting force of 500 g
- Digitally adjustable cutting speed and force
- 1 GB memory for offline cutting and data storage
- Mechanical resolution of 0.025 mm per step
- Repeatability of 0.02 mm

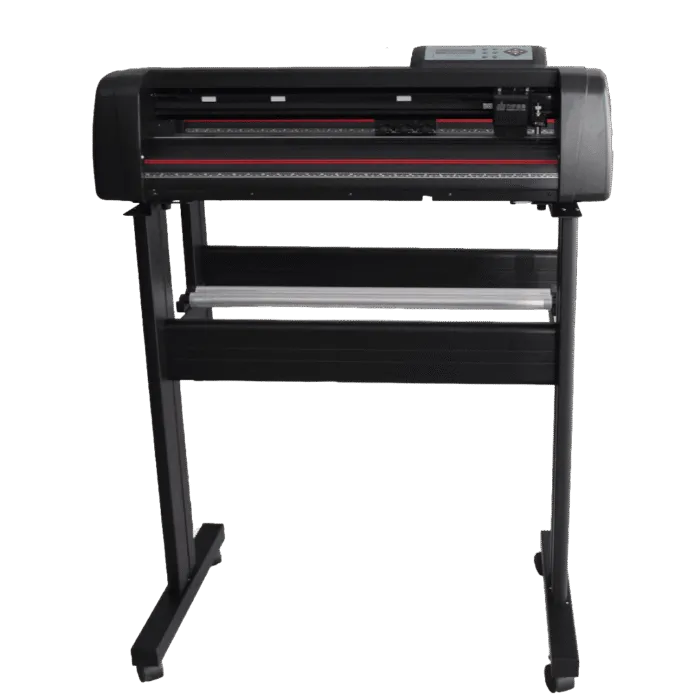

- LCD display and stand included
- USB 2.0 and USB drive support
- HP-GL and DM-PL command support
- Emergency stop and stop-to-return functionality

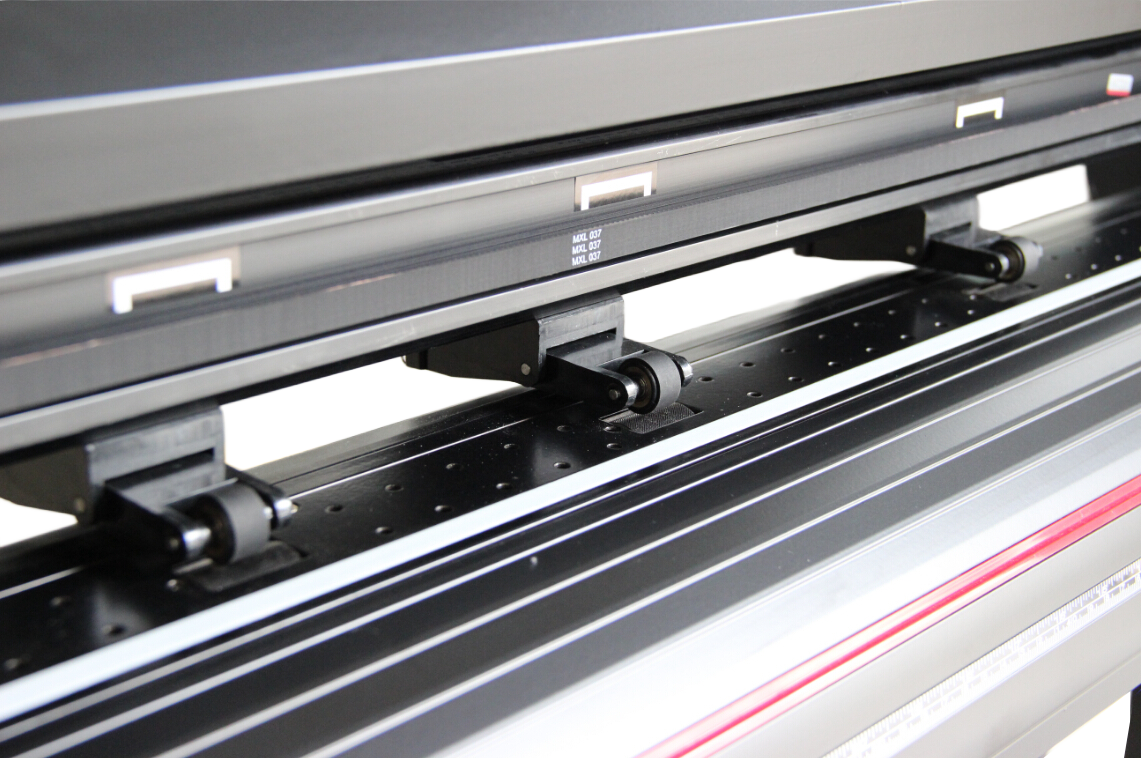

- Three pinch rollers on the DF 631-AF
- Five pinch rollers on the DF 1261-AF
Designed for Flexible Cutting Workflows
The DF Series combines automatic contour cutting with direct USB file access for convenient job handling. Adjustable cutting settings and servo-controlled movement support a range of vinyl graphic production tasks.
Specifications are subject to change without prior notice.
| Models | DF 631-AF / DF 1261-AF |
|---|---|
| Machine Type | Vinyl cutting plotter |
| Maximum Cutting Speed | 1,000 mm/s |
| Maximum Cutting Force | 500 g |
| LCD Display and Stand | Included |
| Memory | 1 GB |
| Mechanical Resolution | 0.025 mm/step |
| Repeatability | 0.02 mm |
| Power Supply | AC 220 V / 110 V ±15% |
| Power Consumption | Less than 100 W |
| Command Formats | HP-GL / DM-PL |
| Interface | USB 2.0 and USB drive |
| Drive System | Servo drive |
| Pinch Rollers | DF 631-AF: 3; DF 1261-AF: 5 |
