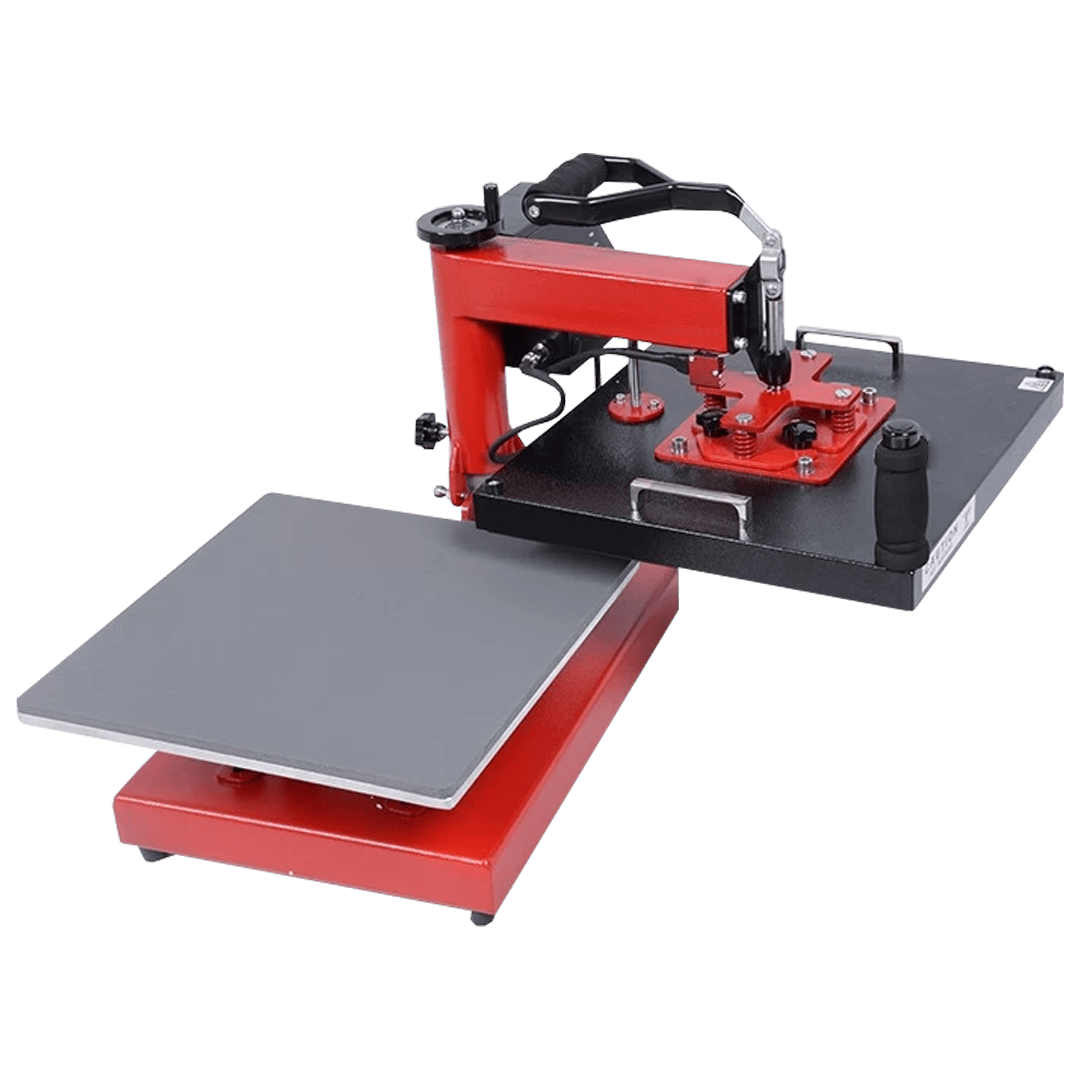

Microtec DCH-800 Economy Digital Combo Heat Press
- 380 × 380 mm platen for flat heat-transfer applications.
- Manual swing-away design with multifunctional capability.
- Digital time and temperature control with a maximum temperature of 225°C.
- Optional mug, plate and cap heaters for a wider range of personalised products.
The Microtec DCH-800 Economy Digital Combo Heat Press provides a multifunctional heat-transfer solution for businesses producing personalised garments and promotional products.
With a 380 × 380 mm platen, the DCH-800 accommodates flat articles up to 20 mm thick. Its manual swing-away design allows the upper platen to move away from the pressing area when positioning or removing items.
The GY-04 digital controller provides time and temperature adjustment, with a timer range of 0 to 999 seconds and a maximum temperature of 225°C. Optional mug, plate and cap heaters allow the machine to be configured for additional product types.
Key Features
- Manual, multifunctional swing-away heat press
- 380 × 380 mm platen
- Supports articles up to 20 mm thick
- GY-04 digital time and temperature controller
- Timer range of 0 to 999 seconds
- Maximum temperature of 225°C
- Temperature accuracy of ±5°C
- Optional mug heaters for diameters of 6–7.5 cm and 7.5–9 cm
- Optional 12 oz and 17 oz mug heaters
- Optional plate heaters with diameters of 12.6 cm and 15.2 cm
- Optional 9 × 15.5 cm cap heater
Designed for Personalised Product Production
The DCH-800 combines a square pressing area with interchangeable heater options for different applications. It supports flat heat-transfer work, with optional attachments extending its use to compatible mugs, plates and caps.
Specifications are subject to change without prior notice.
| Model | DCH-800 |
|---|---|
| Machine Type | Manual, swing-away, multifunctional heat press |
| Platen Size | 380 × 380 mm |
| Maximum Article Thickness | 20 mm |
| Controller | GY-04 digital time and temperature control |
| Optional Mug Heaters | 6–7.5 cm diameter; 7.5–9 cm diameter; 12 oz; 17 oz |
| Optional Plate Heaters | 12.6 cm and 15.2 cm diameter |
| Optional Cap Heater | 9 × 15.5 cm |
| Voltage | 120 V / 220 V |
| Power | 1.2 kW / 1.8 kW |
| Timer Range | 0–999 seconds |
| Maximum Temperature | 225°C |
| Temperature Accuracy | ±5°C |
| Packing Dimensions | 680 × 520 × 580 mm |
| Net Weight | 41.7 kg |
| Gross Weight | 47.2 kg |
