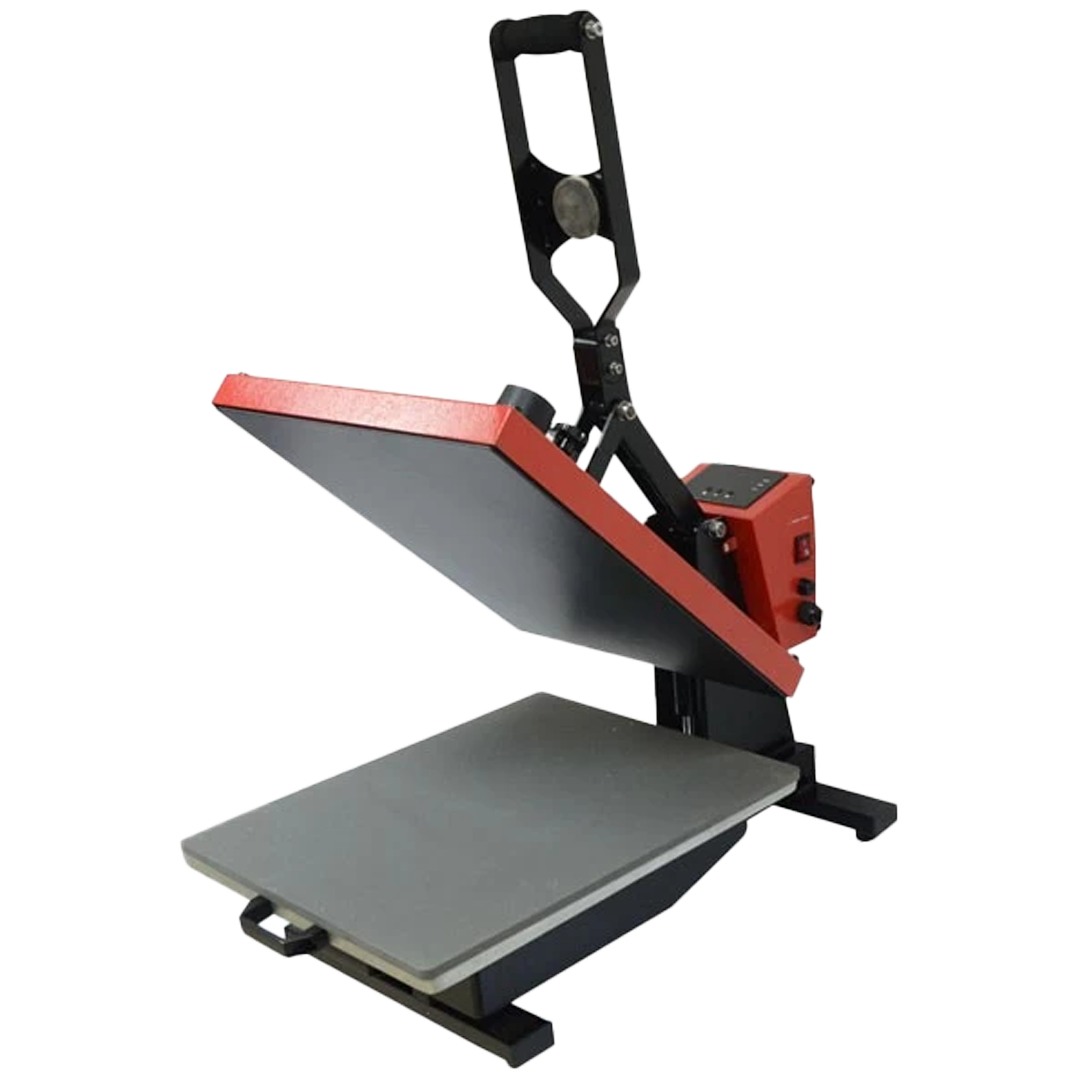

Microtec UHP Auto Open Heat Press
- Auto-release heat press with a 35° opening angle.
- Two platen sizes: 380 × 380 mm or 400 × 500 mm.
- Digital time and temperature control with a timer up to 999 seconds.
- Maximum temperature of 225°C and support for articles up to 15 mm thick.
The Microtec UHP Auto Open Heat Press provides an auto-release solution for businesses producing heat-transfer garments, gifts and promotional products.
Available as the UHP 15 with a 380 × 380 mm platen or the UHP 20 with a 400 × 500 mm platen, the range offers a choice of pressing areas. Both models accommodate articles up to 15 mm thick and provide a 35° opening angle.
The GY-04 digital controller allows operators to set time and temperature for the application. A timer range of 0 to 999 seconds, maximum temperature of 225°C and temperature accuracy of ±5°C support controlled pressing.
Key Features
- Auto-open, auto-release heat press
- UHP 15 platen size of 380 × 380 mm
- UHP 20 platen size of 400 × 500 mm
- Supports articles up to 15 mm thick
- 35° opening angle
- GY-04 digital time and temperature controller
- Timer range of 0 to 999 seconds
- Maximum temperature of 225°C
- Temperature accuracy of ±5°C
Designed for Everyday Heat-Transfer Work
The UHP range combines automatic release with straightforward digital settings for repeat pressing tasks. Two platen sizes allow businesses to select a pressing area suited to their typical garment and flat-product applications.
Specifications are subject to change without prior notice.
| Models | UHP 15 / UHP 20 |
|---|---|
| Machine Type | Auto-release heat press |
| Platen Size | UHP 15: 380 × 380 mm; UHP 20: 400 × 500 mm |
| Controller | GY-04 digital time and temperature control |
| Maximum Article Thickness | 15 mm |
| Opening Angle | 35° |
| Voltage | UHP 15: 120 V; UHP 20: 220 V |
| Power | UHP 15: 1.6 kW; UHP 20: 1.8 kW |
| Timer Range | 0–999 seconds |
| Maximum Temperature | 225°C |
| Temperature Accuracy | ±5°C |
| Packing Dimensions | UHP 15: 850 × 490 × 490 mm; UHP 20: 850 × 540 × 490 mm |
| Listed Weight | UHP 15: 45 kg; UHP 20: 52 kg |
