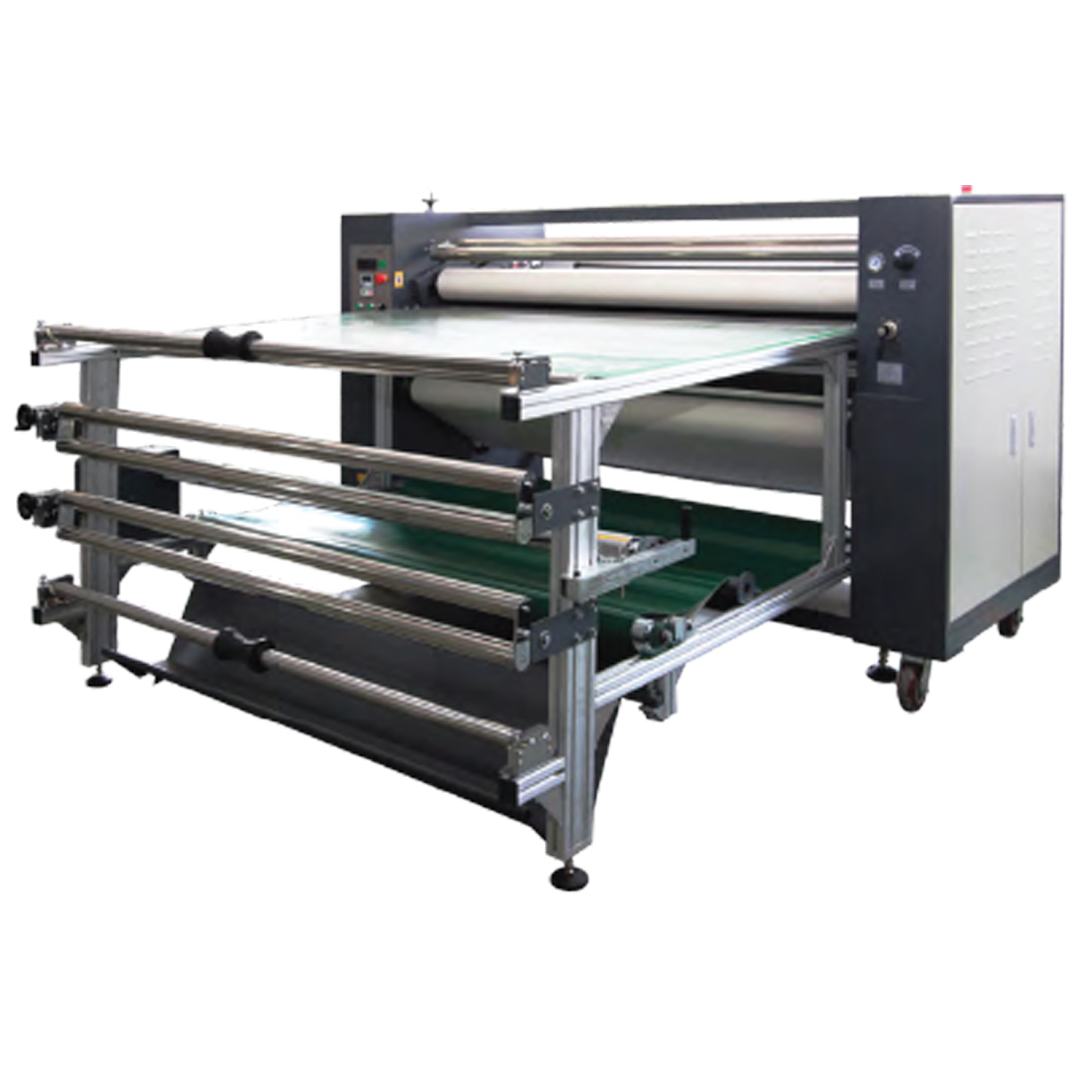

Fulei Union HT-1732 T2B Heat Transfer Machine
- 320 mm oil-heated drum with infrared heating elements.
- Variable working speed up to 4.2 m/min for adjustable production control.
- Working temperature of 190–230°C with constant temperature control.
- Easy feeding table and automatic felt entry and release.
The Fulei HT-1732 T2B Heat Transfer Machine combines controlled heating with a practical feeding table for heat transfer production.
Featuring a 320 mm oil-heated drum and infrared heating elements, the HT-1732 T2B operates at temperatures from 190 to 230°C. Constant temperature control supports consistent heating, while variable working speeds from 0 to 4.2 m/min allow operators to adjust the feed rate to suit the application.
The feeding table assists with material positioning and handling. An automatic mode for felt entry and release simplifies felt engagement, while a temperature alarm is set at 250°C.
Key Features
- 320 mm diameter oil-heated drum
- Infrared heating elements
- Constant temperature control
- Variable working speed from 0 to 4.2 m/min
- Working temperature range of 190 to 230°C
- Alarm temperature of 250°C
- Easy feeding table for material handling
- Automatic mode for felt entry and release
- 750 W drive motor
- 20 kW power consumption
- 380 V three-phase power requirement
Designed for Controlled Heat Transfer
The HT-1732 T2B brings together adjustable speed, controlled heating and accessible material feeding. Its table-based layout supports the positioning of work before it enters the transfer process.
Specifications are subject to change without prior notice.
| Model | HT-1732 T2B |
|---|---|
| Machine Type | Heat transfer machine |
| Heating Type | Oil |
| Heating Elements | Infrared |
| Drum Diameter | 320 mm |
| Variable Working Speed | 0–4.2 m/min |
| Working Temperature | 190–230°C |
| Alarm Temperature | 250°C |
| Felt Entry and Release | Automatic mode |
| Drive Motor | 750 W |
| Power Consumption | 20 kW |
| Power Requirements | 380 V, 50/60 Hz, three phase |
| Machine Dimensions | 2,480 × 2,418 × 1,488 mm |
| Net Weight | 1,300 kg |
| Gross Weight | 1,500 kg |
